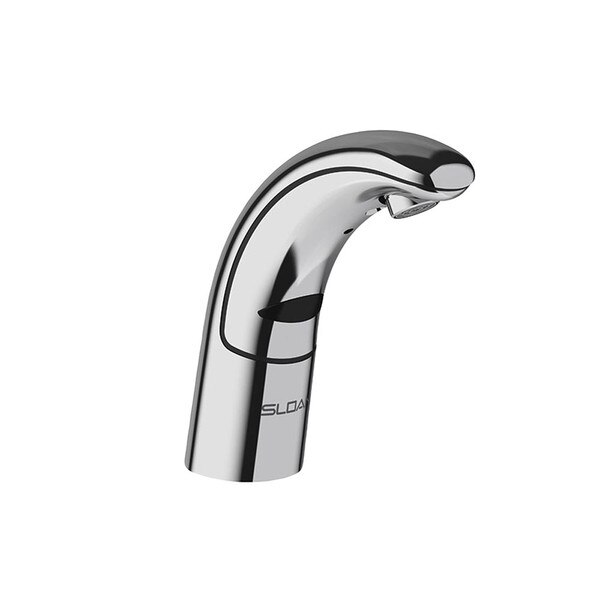

Sloan 3335000 EAF-150 Optima Sensor Faucet, 1.5 GPM, Polished Chrome, Battery Operated, IQ Feature

Sloan EAF-150 Optima I.Q. Sensor Faucet. Model: EAF-150-BAT-CP-1.5GPM-AER-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 1.5 GPM with an aerated type (AER) nozzle. Default settings use 0.75 gallons per wash cycle. Polished chrome finish.

All Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware and flexible high-pressure water supply hose(s) & strainer.

Sloan Optima EAF type faucets also feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.

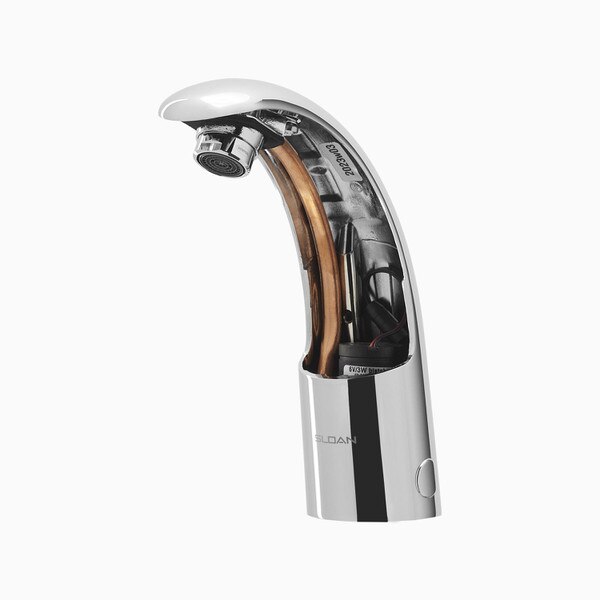

• Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
• Single hole mount type (4" and 8" Trim plates are available separately. See 0362011 or 3365303.)
• Temperature Mixer not Included.
• Sensor Range: 4" – 5" (102 – 127mm)
• Battery Life: 3 years 8,000 cycles/month (Optional power harvesting significantly extends service life).
• 6 Volt Lithium 2CR5 Commercial Battery included

Measurement Diagram:
