Sloan 3362102 SF-2150-4-BAT-TEE-CP-0.5GPM-MLM-FCT Pedestal Spout Sensor Faucet, Single Hole
Details

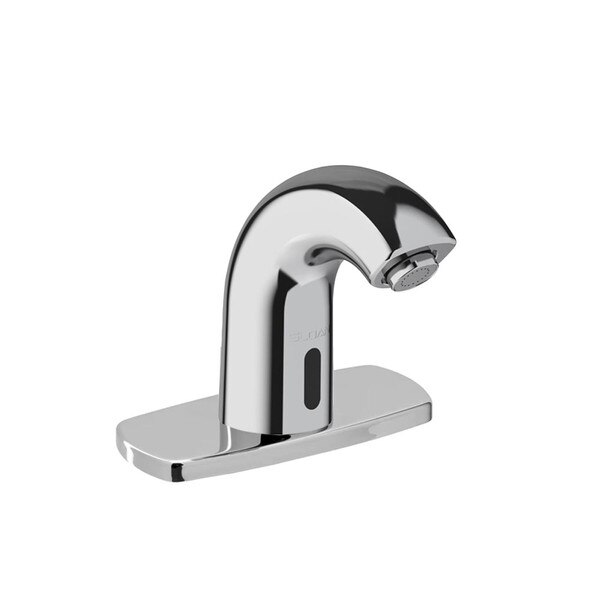

Sloan, commercial grade, ADA compliant, automatic (sensor activated) lavatory faucet. Low body pedestal spout format (4-1/2" Spout height, 3-7/8" spout reach). Battery operated. Adjustable IR sensor range. Polished chrome finish. Includes back-check tee.
Water saving 0.5 gpm flow rate with 30 second (adjustable) shut-off. Multi-laminar spray delivery makes maximum use of water without unnecessary splashing.
Single hole mounting for easier installation with a 4" trim plate provided for a nicer finished presentation. Extended 36" sensor cable and 24" supply hose allow more flexible below deck mounting options.

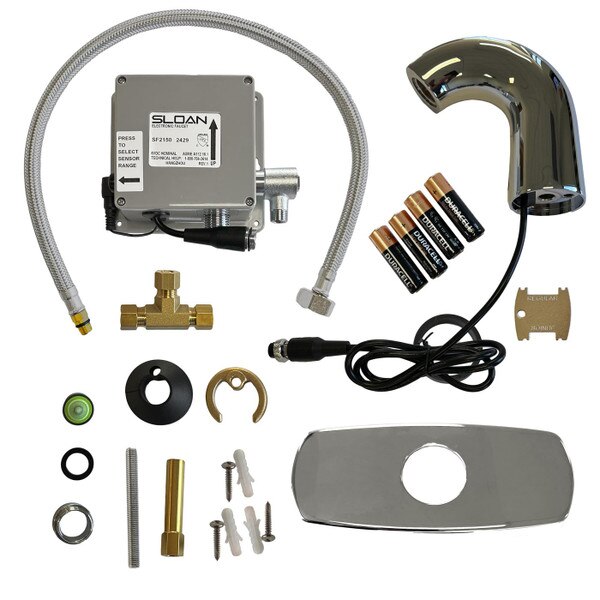

- Includes 4 AA cell batteries (Battery life estimated at 2 years 8,000 cycles/month)
- Filtered Solenoid Valve with serviceable Strainer Filter
- Includes appropriate Mounting Hardware
- WaterSense Listed
The back-check tee provided with this faucet will combine the hot and cold water lines (and prevent back-flow), but will not control the temperature. The hot and cold water mix may need to be adjusted at the source (shut-off) valves or using inline pressure adapters.
Measurement Diagram:
Specs
| Type: | Pedestal Faucet, Sensor |
| Brand: | Sloan |
| Model No.: | 3362102 (SF-2150-4-BAT-TEE-CP-0.5GPM-MLM-FCT) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Automatic (touchless) |
| Power: | Battery: 4 AA (included) Life: 2 years @ 8,000 cycles / month |
| Mount Type: | Single Hole (4" trim plate provided) |
| Delivery: | Multi-Laminar (MLM) Spray Type 0.5 gpm (0.25 gallons per cycle) |
| Timeout: | 30 Seconds |
| Overal Dimensions (above counter): | 2-1/8" Wide x 4-1/2" Tall x approx. 5" Deep (3-7/8" Spout Reach) 4" Wide Trim Plate |
| Shipping Dimensions: | 17" Length x 8.3" Width x 2.75" Height |
| Shipping Weight: | 5.1 lbs. |
| UPC / GTIN: | 671254313828 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Additional Comments: | Includes appropriate mounting hardware. |
Architectural Specifications:
4" Trim Plate, Battery Power Supply, Back-Check Tee, Polished Chrome Finish, 0.5 gpm, Multi-Laminar Spray, Infrared Sensor, Sloan® Battery-Powered Deck-Mounted Low Body Faucet.
