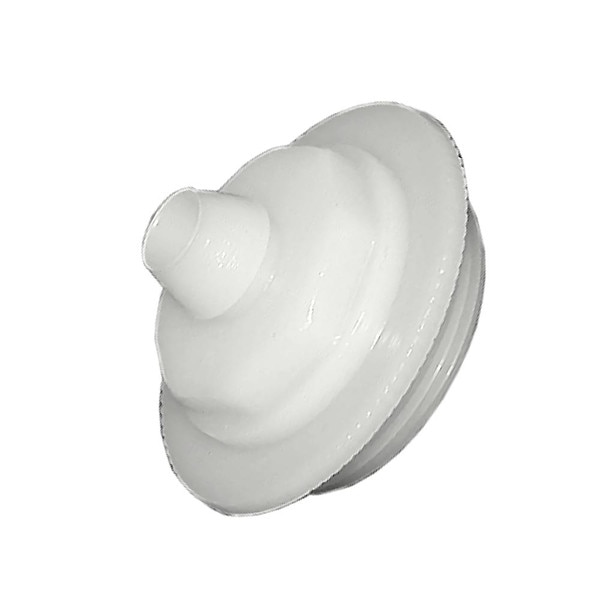

Sloan Part 0302298 B-40 Natural Delrin Bushing (Pre 1971 flushometers)
Details
Sloan OEM part. This is a pretty obscure part, but if you need one, you need one! The handle bushings on Sloan manual flushometers produced before mid-1971 were a white (frequently described as "natural" or "Delrin") color. Aside from vandalism, the more common part to cause leaks is the handle seal (small black rubber piece) which is B-39 (part no. 5302297). If you're not sure where the defect lies, the entire handle assembly for these flushometers is B-32-A (5302279).
For comparison, the newer flushometers have a blackJ handle bushing and the seal is plastic. The bushing and seal come in one kit, as B-51-A (3302306). The entire assembly for those, starts with B-73 (i.e. B73-A, B-73-A-PH, etc.).
Hint: If you're not sure about when your flushometer was produced, it may be easiest to just take the handle off and examine the existing bushing & seal.
Specs
| Type: | Handle bushing |
| Manufacturer: | Sloan |
| Brand / Compatibility: | Sloan diaphragm type (manual) flushometers prior to mid-1971 |
| Model No.: | 0302298 (B-40) |
| Overall Dimensions: | Not published. |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | Less than 1 lb. |
| UPC / GTIN: | 671254056619 |
| Country of Manufacture: | United States |
| Warranty: | No express warranty (Warranted against initial defects in materials and workmanship) |
| Additional Comments: | Handle bushing used at the base of the handle assembly on pre-July 1971 Sloan manual flush valves. |
