Sloan Part 0301113 A-15-A Molded Diaphragm Disc for Regal and Old Style Royal Flushometers (aka: 5301111)
Details

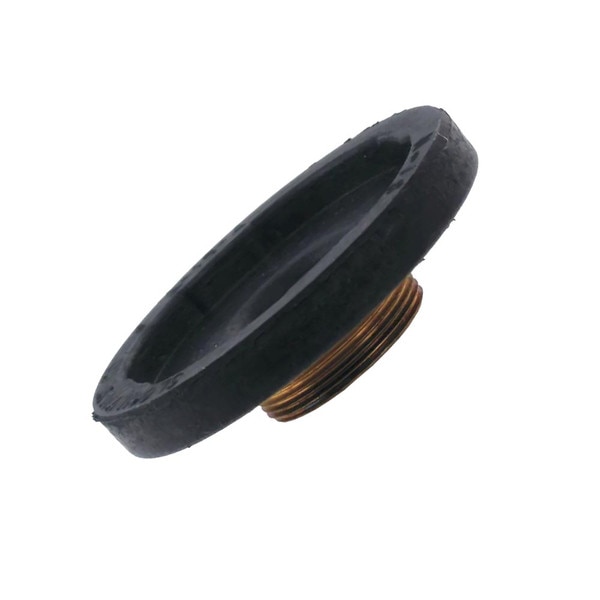

Sloan OEM part. Molded rubber disk with brass core and threads. Located between the relief valve and the diaphragm in many Sloan manual flushometers including Regal, Royal, and Series 900.
aka: 5301111
Note: This part is only for manual sloan flushometers with diaphragm style valves. It is not for piston valve type flushometers. Sensor flushometers use flush volume regulators instead.
Specs
| Type: | Molded disc with brass threading |
| Manufacturer: | Sloan |
| Brand / Compatibility: | aka: 5301111 | Royal, Regal, Sloan, Series 900, Optima, Optima Royal |
| Model No.: | 0301113 (A-15-A) |
| Overall Dimensions: | Not published. Approximately 3" diameter |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | Less than 1 lb. |
| UPC / GTIN: | 671254000599 |
| Country of Manufacture: | United States |
| Warranty: | No express warranty (Warranted against initial defects in materials and workmanship) |
| Additional Comments: | Used in the diaphragm assembly of most manual Sloan flushometers. |
