Sloan Part 5301111 A-15-A Diaphragm Disk (aka: 0301113)
Details

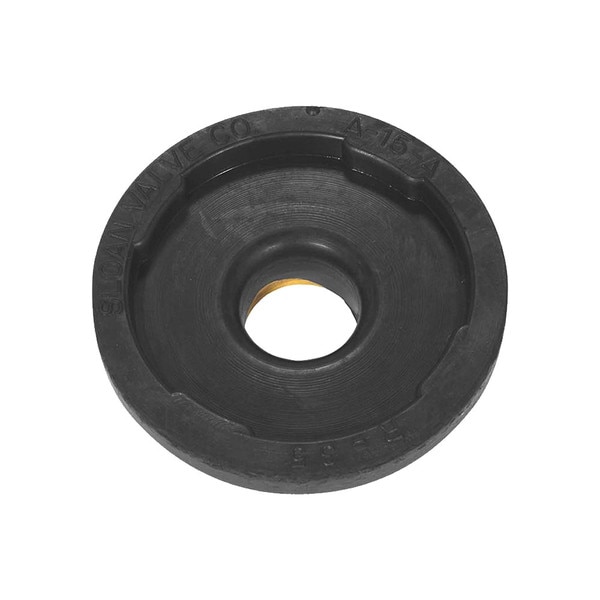

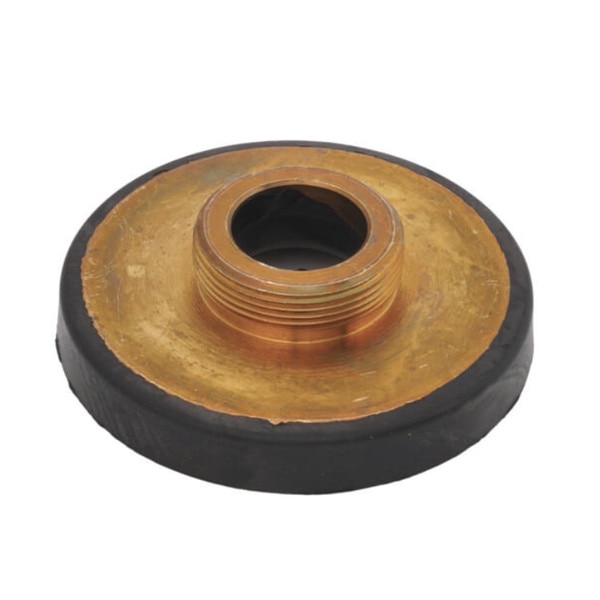

Sloan OEM part. Molded rubber disk with brass core and threads. Located between the relief valve and the diaphragm in many Sloan manual flushometers including Regal, Royal, and Series 900.
aka: 0301113
Note: This part is only for manual sloan flushometers with diaphragm style valves. It is not for piston valve type flushometers. Sensor flushometers use flush volume regulators instead.
Specs
| Type: | Flush Valve Parts, for Water Closet (Toilet) or Urinal, "Disc" (used in drop-in diaphragm assembly) |
| Manufacturer: | Sloan |
| Brand / Compatibility: | Water Closet or Urinal flushometers: Regal, Series 900, and Optima. |
| Model No.: | 5301111 (A-15-A) |
| Overall Dimensions: | Not published |
| Shipping Dimensions: | 6" Length x 4" Width x 4" Height |
| Shipping Weight: | 1 lb. |
| UPC / GTIN: | 671254044760 |
| Country of Manufacture: | United States |
| Warranty: | No Express Warranty (Warranted against initial defects in material and workmanship.) |
