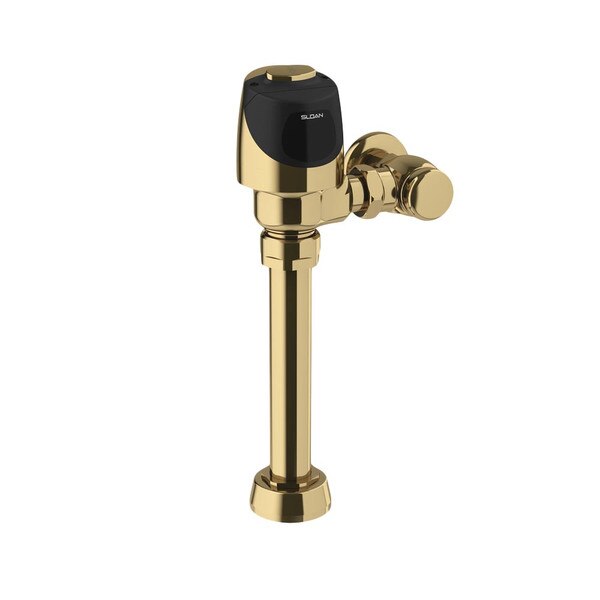

Sloan 3250335 G2 8111-1.28-PB Automatic Water Closet (Toilet) Flushometer, 1.28 gpf, Top Spud, Polished Brass
Details
Sloan G2 8110 Optima Plus Series exposed sensor flushometer for toilets. Battery operated with 4 included AA cells. 1.28 gallons per flush. Polished brass finish. Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection provides hands-free (no-touch) operation. User friendly 3 second flush delay. Courtesy flush override button.
1-1/2" Spud coupling and flange for 1-1/2" top spud toilet fixtures. 1" supply pipe. 1" Angle Control Stop. Adjustable tailpiece.
Valve type: flex-tube diaphragm with regulator.
Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw.
- Engineered metal cover with replaceable lens window.
- "Low Battery" Flashing LED.
- Fixed metering bypass and no external volume adjustment to ensure water conservation.
- 1” I.P.S. Screwdriver Bak-Chek Angle Stop with Free Spinning Vandal Resistant Stop Cap.
Measurement Diagram:
Specs
| Type: | Water Closet (Toilet) Flushometer, Sensor |
| Brand: | Sloan |
| Model No.: | 3250335 (G2 Optima Plus 8111-1.28 PVDPB) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Brass |
| Operation: | Automatic (touchless) |
| Flush Volume: | 1.28 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 1" diameter |
| Valve Type: | Fixed Bypass Diaphragm |
| Power Type: | Battery (4 AA, included) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | Yes |
| Shipping Dimensions: | 12" Length x 10" Width x 5" Height |
| Shipping Weight: | 8.8 lbs. |
| UPC / GTIN: | 671254403116 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
Architectural Specifications:
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
