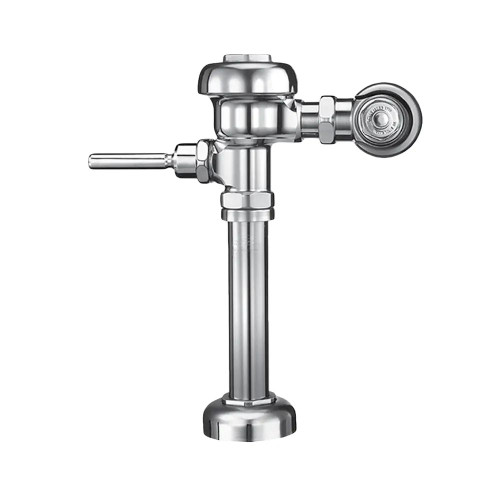

Sloan 3982659 186-1.0-XL Regal Manual Urinal Flushometer, 1.0 gpf, Top Spud, 1" Control Stop

SKU: 3982659
(No reviews yet) Write a Review
$175.60
Adding to cart… The item has been added
Availability:
Ships from the minufacturer in about 16 days.

Sloan Regal exposed-style manual urinal flushometer. 1.0 gpf (gallons per flush) flush volume. Diaphragm-style valve. Single flush. Top spud. XL Sweat solder adapter kit. Polished chrome finish on semi-red brass (for greater durability).

  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Control Stop Plug
  • Cast Wall Flange with Set Screw
  • Vacuum Breaker Flush Connection
  • No External Volume Adjustment to Ensure Water Conservation

See Specs tab for complete list of certifications.

Measurement Diagram:

Sloan 3982659 186-1.0-XL Regal Flushometer Measurements Diagram
Architectural Specification:

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
