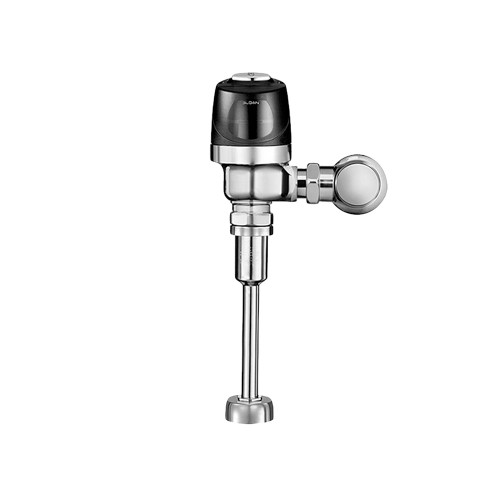

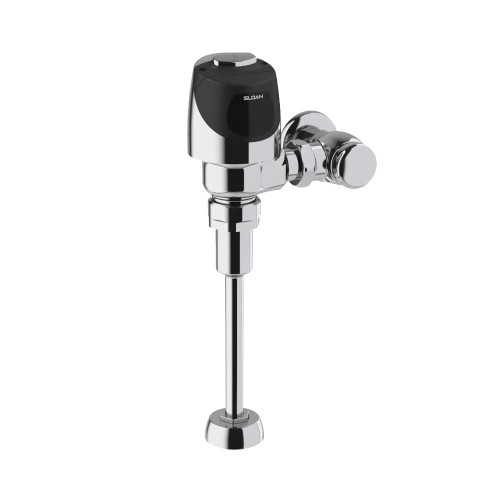

Sloan exposed sensor urinal flushometer. 0.5 gpf (gallons per flush) volume. Diaphragm style valve. Single flush. Top spud. Battery operated (4 AA cells, included). XL Sweat solder adapter kit. Polished chrome finish on semi-red brass (for greater durability).
- Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
- Sweat Solder Adapter with Cover Tube
- Courtesy Flush Override Button
- Four (4) Size AA Batteries included. “Low Battery” Flashing LED
- High Chloramine Resistant PERMEX Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
- Engineered Plastic Cover with replaceable Lens Window
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
Measurement Diagram:
