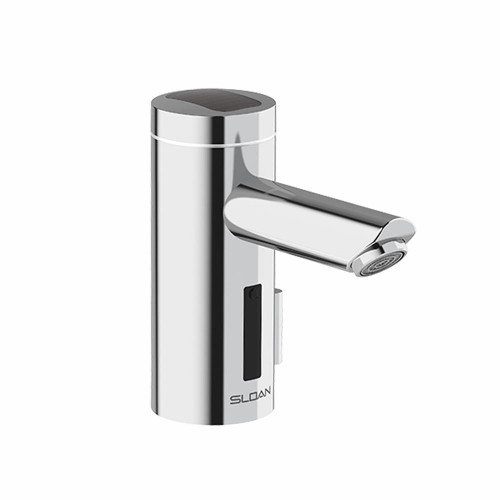

Sloan EAF-275 Optima Sensor Faucet. Model: EAF-275-SOL-ITM-CP-1.0GPM-LAM-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 1.0 GPM with laminar flow. Default settings use 0.5 gallons per wash cycle. Polished Chrome finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware, flexible high-pressure water supply hose(s) & strainer.
An integrated, color-coded mixing lever, mounted on the side, allows the temperature to be easily controlled. This lever can also be removed once the temperature is set and the remaining socket covered with a finished plug to discourage tampering.
Solar Powered with a 6VDC lithium battery back-up.
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.5 gallons per cycle.
- Single hole mount type (4" and 8" Trim plates are available separately. See 3365468 or 3365024.)
- Sensor Range: 4" – 5" (102 – 127mm)
- Integrated thermostatic mixing valve provides ASSE-1070 rating for anti-scald performance.
Measurement Diagram:

Architectural Specification:
Solar Power Supply, Integrated Thermostatic Mixer, Polished Chrome Finish, 1.0 gpm, Laminar Spray, Infrared Sensor, Optima® Solar-Powered Deck-Mounted Mid Body Faucet.
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, ASSE 1070, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, GPC 0.25 or less, HPD, IAPMO, NSF-61, NYC604.4, Proposition 65, TAS, UPC Certified, UPC Low Lead Compliant, WaterSense Listed, WELL Building Standard.
Warnings:
