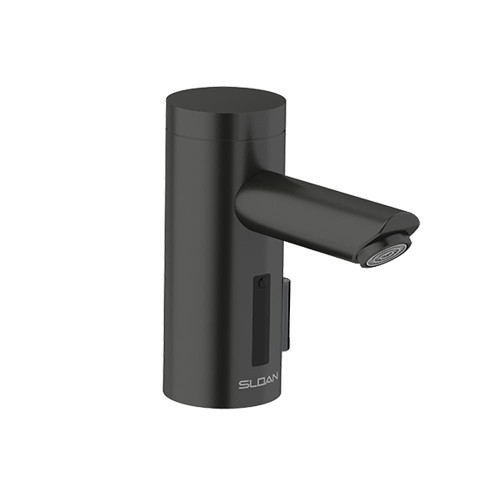

Sloan EAF-250 Optima Sensor Faucet. Model: EAF-250-BAT-ISM-GR-0.5GPM-AER-IQ-FCT. This commercial grade, ADA compliant, deck-mount lavatory faucet delivers 0.5 GPM with aerated flow. Default settings use only 0.25 gallons per wash cycle! Graphite finish.
All Sloan Optima EAF type faucets feature IQ button functionality which allows the following operating modes: continuous run, temporary off, permanent off, and auto-set sensor range. It can also be used to set an automatic line purge every 12 or 24 hours.
In addition, all Sloan Optima faucets feature an automatic, self-adapting, infra-red sensor via a dedicated microprocessor. Also included are appropriate mounting hardware, flexible high-pressure water supply hose(s) & strainer.
An integrated, color-coded mixing lever, mounted on the side, allows the temperature to be easily controlled. This lever can also be removed once the temperature is set and the remaining socket covered with a finished plug to discourage tampering.
Powered with a 6VDC lithium battery. Expected battery life: 3 years @ 8,000 cycles/month.
- Sturdy cast-brass construction with a magnetic solenoid valve for greater reliability.
- Factory default 30 second timeout and 0.25 gallons per cycle.
- Sensor Range: 4" – 5" (102 – 127mm)
- Hot and cold temperature mix lever Included on right side of fixture.
Measurement Diagram:

Architectural Specification:
Battery Power Supply, Integrated Side Mixer, Graphite Finish, 0.5 gpm, Aerated Spray, Infrared Sensor, Optima® Battery-Powered Deck-Mounted Mid Body Faucet.
Compliances & Certifications:
ADA Compliant, ASME A112.18.1 Compliant, BREEAM Materials Credit, BREEAM Water Credit, CEC Compliant, cUPC Certified, cUPC Low Lead Compliant, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, IAPMO, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, NSF-61, NYC604.4, Proposition 65, Satisfies LEED Credits, TAS, UPC Certified, UPC Low Lead Compliant, WaterSense Listed, WELL Building Standard.
Warnings:
