Sloan Royal 3910115 110-3.5-C-L3-HL3 Exposed Manual Water Closet (Toilet) Flushometer, 3.5 gpf, Valve Inlet on Left, 3" Push Button
Details

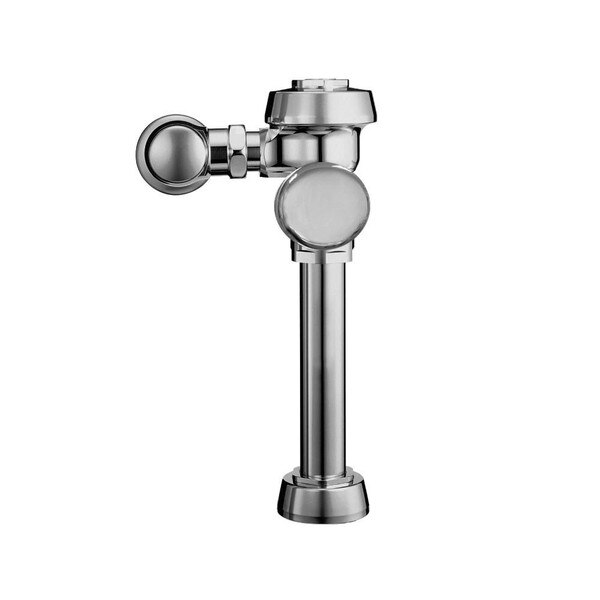

Sloan Royal exposed manual flushometer for water closets (toilets). Single Flush, 3.5 gallons per flush. Polished chrome finish. Front facing, non-hold-open, 3" oscillating button ensures intended flush volume.
1-1/2" Spud coupling and flush connection. For 1-1/2" top spud toilet fixtures. 1" supply pipe. Supply inlet on left of valve with 1" Angle Control Stop. Adjustable tailpiece.
Valve type: Diaphragm with relief valve.
PERMEX synthetic rubber, dual filtered, fixed bypass diaphragm for improved life and lower maintenance. Choramine resistant. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Vacuum breaker flush connection
- 11-1/2" Rough-in
- 1” I.P.S. Screwdriver Bak-Chek Angle Control Stop with Free Spinning Vandal Resistant Stop Cap
Measurement Diagram:
Specs
| Type: | Water Closet (Toilet) Flushometer, Manual |
| Brand: | Sloan |
| Model No.: | 3910115 (ROYAL 110-3.5-C-L3-HL3) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Manual (Push Button) |
| Flush Volume: | 3.5 gpf (13.2 Lpf) |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 1" diameter |
| Valve Type: | Diaphragm |
| Power Type: | None (Manual) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | N/A |
| Shipping Dimensions: | 17" Length x 9" Width x 3" Height |
| Shipping Weight: | 6.4 lbs |
| UPC / GTIN: | 671254061606 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
Warnings:
 | This product can expose you to chemicals including Lead, which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
