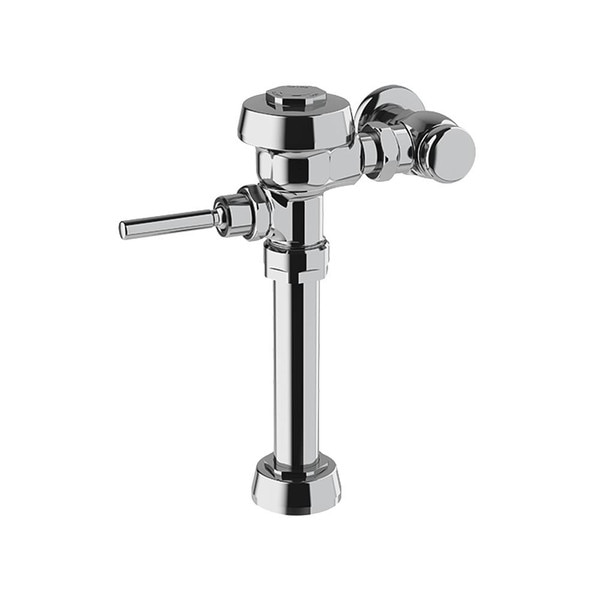

Sloan Royal 3910097 110-2.4 Exposed Manual Water Closet (Toilet) Flushometer, 2.4 gpf
Details
Sloan Royal exposed manual flushometer for water closets (toilets). Single Flush, 2.4 gallons per flush. Polished Chrome finish. ADA compliant, non-hold-open handle and no external volume adjustment to ensure intended flush volume.
1-1/2" Spud coupling and flush connection for 1-1/2" top spud toilet fixtures. 1" supply pipe. 1" Angle Control Stop. Adjustable tailpiece.
Valve type: Diaphragm with relief valve.
PERMEX synthetic rubber, dual filtered, fixed bypass diaphragm for improved life and lower maintenance. Choramine resistant. Longer lifespan from semi-red brass construction and high copper, low zinc brass castings for de-zincification resistance.
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Vacuum breaker flush connection
- 11-1/2" Rough-in
- Semi-Red Brass Construction for extended life.
Measurement Diagram:
Specs
| Type: | Water Closet (Toilet) Flushometer, Manual |
| Brand: | Sloan |
| Model No.: | 3910097 (ROYAL 110-2.4) |
| Primary Material: | Semi-red Brass |
| Color / Finish: | Polished Chrome |
| Operation: | Manual (Handle) |
| Flush Volume: | 2.4 gpf |
| Fixture Connection: | Top Spud |
| Supply Pipe: | 1" diameter |
| Valve Type: | Diaphragm |
| Power Type: | None (Manual) |
| Rough-in Dimension: | 11-1/2" |
| Spud Coupling: | 1-1/2" |
| Valve Operating Pressure: | 15 – 80 PSI (103 – 552 kPa). Specific toilet fixtures may require greater minimum flowing pressure - consult manufacturer requirements. |
| Override: | N/A |
| Shipping Dimensions: | 17" Length x 9" Width x 3" Height |
| Shipping Weight: | 7.1 lbs |
| UPC / GTIN: | 671254133310 |
| Country of Manufacture: | United States |
| Additional Comments: | 3 Yr. Manufacturer's Warranty |
