Koala (KB3000-AHL) Adjustable Height Changing Station - 75 1/4" x 31 1/2"

This product will ship from the manufacturer on a pallet via Freight service. Please let us know if you will need a lift gate or have restricted access (add'l fees may apply).

Contemporary design that incorporates exceptional safety features, unmatched durability and careful considerations for the cared for and caregiver. Adjustable height ranges from 12”-41” to assist with safe transfer to and from the changing surface and the caregiver does not need to lift the person receiving care. Curved dip in the changing surface guard allows for easier caregiver access. In addition, height controls are easy to locate and use. Designed for public environments. Constructed of 2” powder coated steel tubing. Vandal-resistant changing surface and integrated recessed height controls are fabricated to withstand tampering. The unit has no removable parts or exposed wires. And, the rust free frame make it suitable for wet environments. Its smooth surface can easily be wiped down and cleaned. Crevice-free design helps prevent the buildup of contamination on the changing surface. It can also withstand being hosed down with water.

• Tested to support up to 500 lbs
• Changing Surface: 75.25″ L x 31.5″ W
• Height Range: 12″ – 41″ (29″ range)
• Closed Depth: 10″
• Product has battery backup system to safely operate changing bed height in the event of a power interruption
• Emergency stop feature to break power to actuator in an emergency

Certifications:
ISO 60601-1 and -2: whole product certification
IK10: resistant to high impact and sharp objects
IPX4: can withstand significant exposure to water without damage to its electrical components
Class 1 electrical system to protect against electrical shock

---

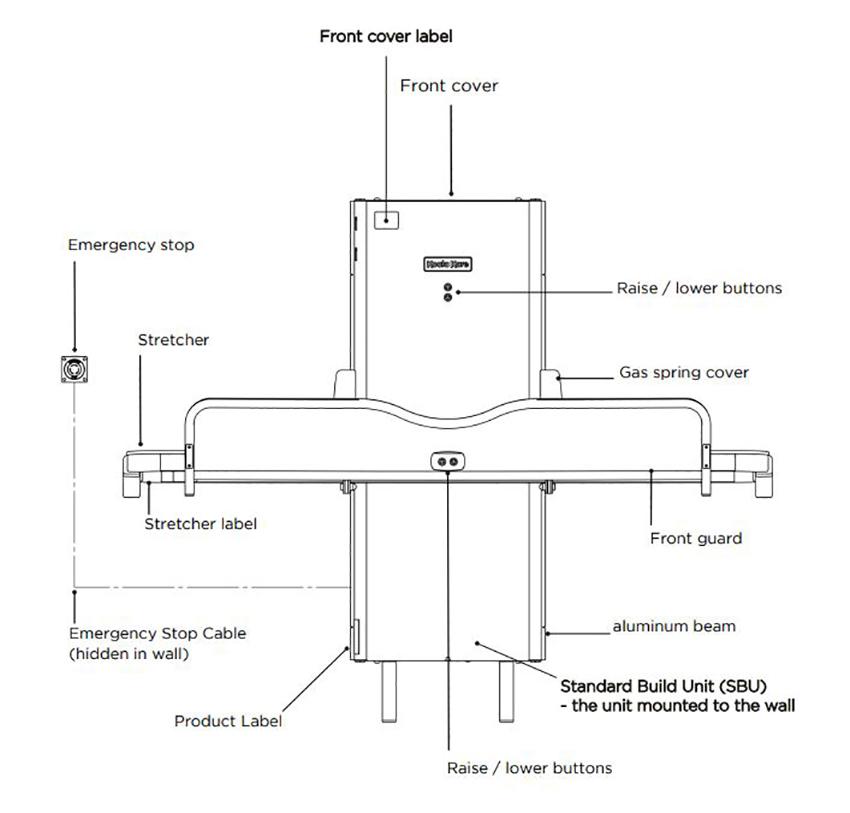

Measurement Diagram:

---
