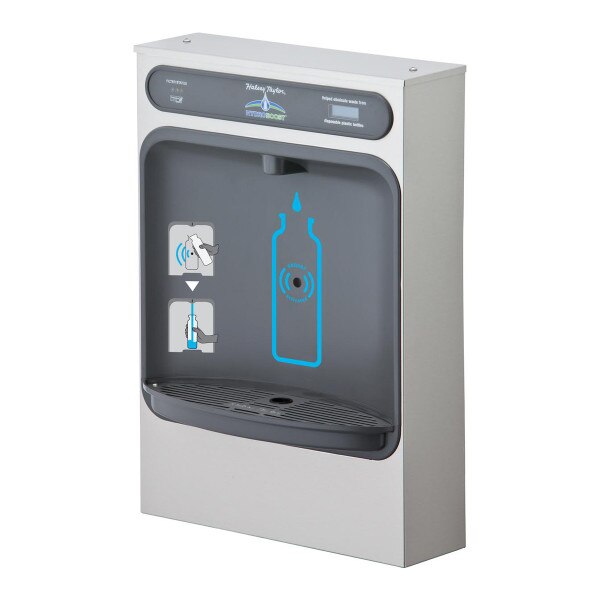

Halsey Taylor HTHBSM-WF HydroBoost Bottle Filling Station Surface Mt. (Non-refrigerated,Filtered)
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
Halsey Taylor stand-alone, wall mount HydroBoost Bottle Filling Station. Touchless operation. Surface mount. Filtered (WaterSentry filter included). Non-Refrigerated. Delivers a clean quick water bottle fill (1.1 GPM with laminar flow to reduce splashes and spills). Promotes sustainability by minimizing our dependency on (and showing how many saved) disposable plastic bottles. Ideal for installations with limited wall depth. Sanitary no-touch sensor activation with automatic 20-second shut-off timer. Note: This unit may be paired with a remote chiller (NOT included) to provide refrigerated (cooled) water. See Halsey Taylor SJ1 remote chiller.
Touchless, sensor-activated design for use in limited wall depth applications
Fill rate is 1.5 GPM
Visual filter monitor with LED filter status indicator for when filter change is necessary
The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste
Able to pair with a remote chiller
This model comes with a Halsey Taylor 55898C filter which is good for 3000 gallons before it will need to be replaced.
It is also compatible with the Elkay 51300C filter which is also good for 3000 gallons before it will need to be replaced but can be bought in multi-packs for savings. And for a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

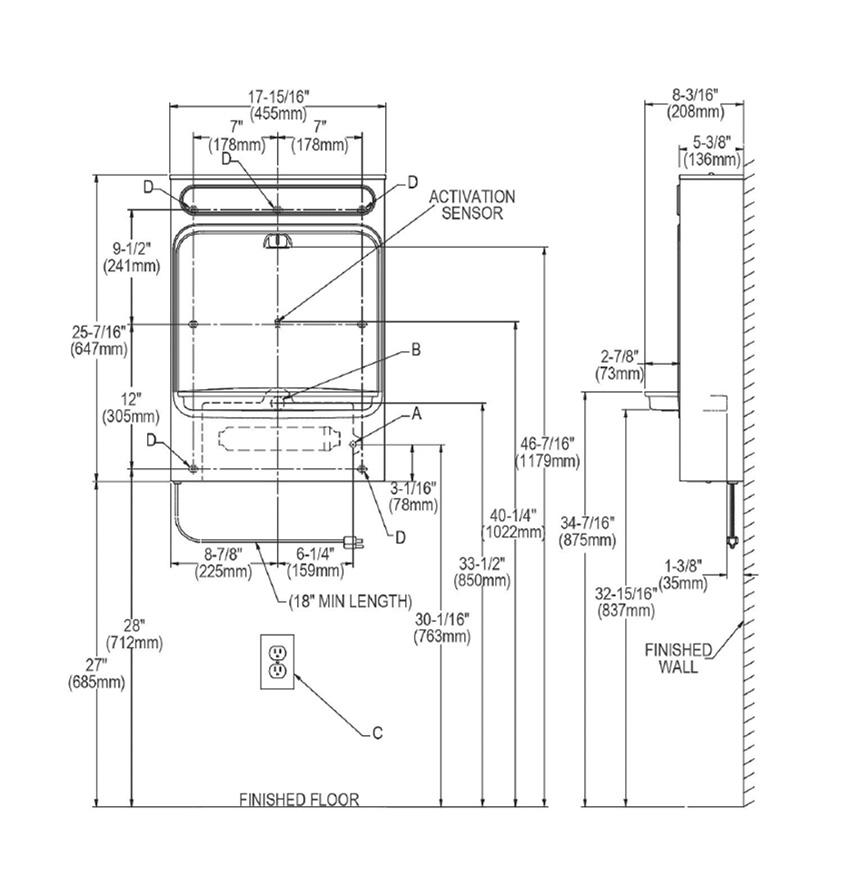

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) Bottle Filling Station |
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Antimicrobial ABS alcove with Stainless Steel Grate |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | None |
| Cooled: | No |
| Filtered: | Yes | Replacement Filter 55898C |
| Power: | 110-120V (Standard) |
| Status Display: | Filter Status Indicator (Green/Yellow/Red) Green Ticker Display (Counts bottles saved from waste) |
| Overall Dimensions: | L: 17-15/16" W: 8-3/16" H: 25-7/16" |
| Rough-in: | Not applicable |
| Shipping Dimensions: | L: 23" W: 14" H: 31" |
| Shipping Weight: | 35 lbs. |
| UPC / GTIN: | '094902767420 |
| Manufacturer Model No.: | HTHBSM-WF |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Bottle Filling Station Surface Mount, Filtered Non-Refrigerated. Features shall include Sanitary Sensor Activated, Visual Filter Monitor, Filtered, Green Counter™, Laminar Flow, Antimicrobial, Real Drain. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
