Halsey Taylor HTHBHVR8BLR-NF Reverse Bi-Level Fountain & HydroBoost Bottle Filler, Refrigerated, 110-120V

(0) No Reviews yet
$2,958.50
SKU: HTHBHVR8BLR-NF

Ships in 17 business days from manufacturer.

The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation with automatic 20-second shut-off timer on bottle filler.


  • Ideal for heavy-use installations such as educational and indoor recreational facilities.

  • Vandal-resistant, push-button activation for both the bottle filler and the water cooler.

  • Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.

  • Hermetically sealed refrigeration system provides chilled water to satisfy thirst.

  • Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water.

  • RIGHT side HIGH configuration.



Certifications:

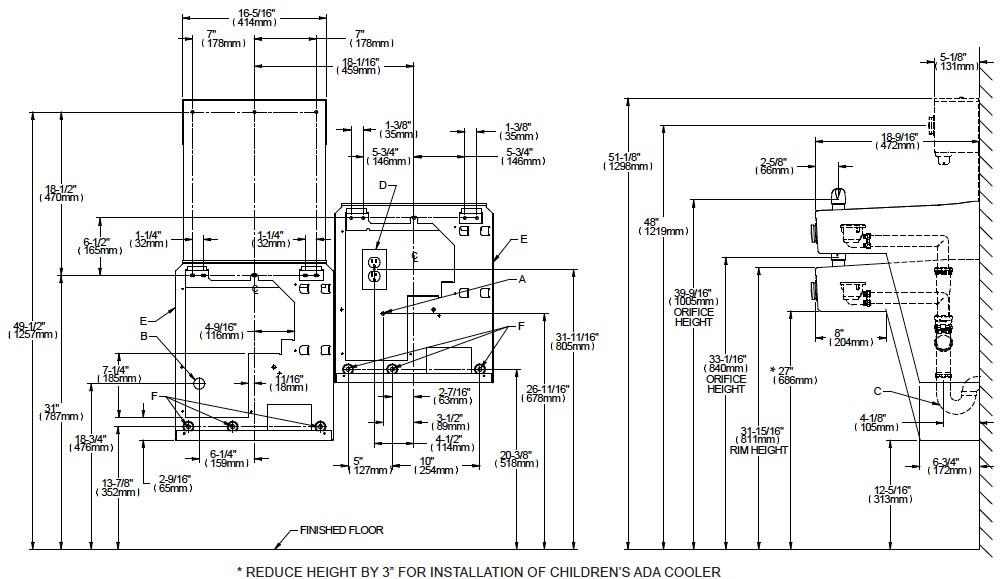

Measurement Diagram:


Installation Location: Indoor or outdoor
Number of Stations: Two (2) drinking fountains plus one (1) HydroBoost bottle filling station
Mount: Wall / Surface
Operation: Push Button
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Stainless Steel, Brushed Finish
Bubbler(s): Chrome Plated Vandal Resistant
Cooled: Yes
Filtered: No
Power: 110-120V (Standard)
Status Display: LCD Green Ticker Bottle Counter
Overall Dimensions: Width: 36-1/8"
Depth: 18-5/8"
Height: 45-1/4"
Rough-in: Not applicable
Shipping Dimensions: Box 1: 22-3/4" Length x 11-1/16" Width x 24-1/4" Height
Box 2: 20-5/8" Length x 20-5/8" Width x 25-13/16" Height
Shipping Weight: 119 lbs.
UPC / GTIN: '094902772103
Manufacturer Model No.: HTHBHVR8BLR-NF
Country of Manufacture: USA
Warranty: Refrigeration: 5 Yr. Manufacturer's Limited
All Other.: 1 Yr. Manufacturer's Limited

Warnings:

California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:

Halsey Taylor HydroBoost® Vandal-Resistant Bottle Filling Station & Bi-Level Reverse ADA Cooler Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Green Counter™, Laminar Flow, Real Drain, Vandal Resistant. Furnished with Vandal Resistant bubbler. Electronic Bottle Filler Button with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
