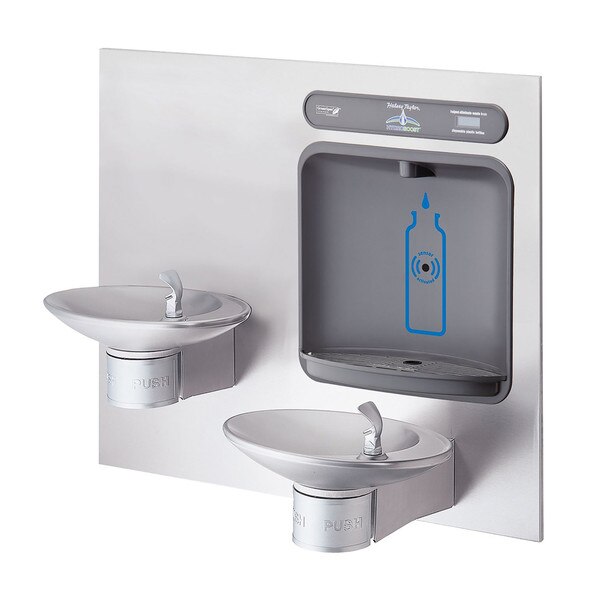

Halsey Taylor HTHB-OVLSEBP-I HydroBoost Bottle Filling Station & Bi-Level OVL-II Fount. (Non-refrigerated, Non-filtered)
Details
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Fully integrated bottle filling station paired with OVL-II™ architectural fountain.
- Touchless, sensor activation designed for easy use (bottle filler); easy-to-operate push-button activation (bubbler).
- Fill rate is 1.5 GPM.
- Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
Certifications:

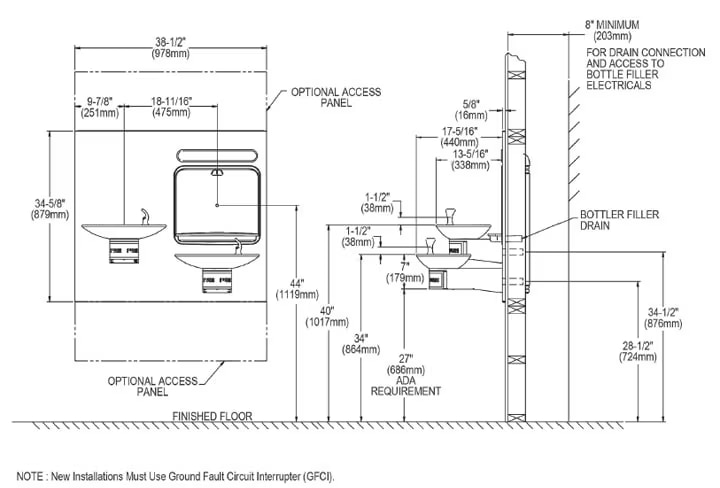

Measurement Diagram:
Specs
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains plus one (1) HydroBoost bottle filling station |
| Mount: | Wall / Recessed |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and two (2) push button drinking fountains |
| Basin(s): | Alcove: Antimicrobial ABS Basin(s) Stainless Steel| Brushed Finish |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | Halsey Taylor Double Bubbler |
| Cooled: | No |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | 34-5/8" Tall x 38-1/2" Wide x 21-5/16" Deep |
| Rough-in: | 31-1/2" Tall x 37-1/2" Wide x 3-7/8" Deep |
| Shipping Dimensions: | Box 1: 39-1/4" Length x 19-1/8" Width x 8-1/2" Height Box 2: 41-5/8" Length x 26-1/8" Width x 39-7/8" Height |
| Shipping Weight: | 118 lbs. |
| UPC / GTIN: | 94902015705 |
| Manufacturer Model No.: | HTHB-OVLSEBP-I |
| Included: | Fountain (OVLSEBPWSI-NF) Mounting Frame (MFWS220) |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Bottle Filling Station, & Integral OVL-II™ Fountain, Non-Filtered Non-Refrigerated Stainless. Features shall include Sanitary Sensor Activated, Green Counter™, Laminar Flow, Antimicrobial, Real Drain. Furnished with Double Bubbler ™. Electronic Bottle Filler Sensor With Mechanical Front Bubbler Button activation. Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
