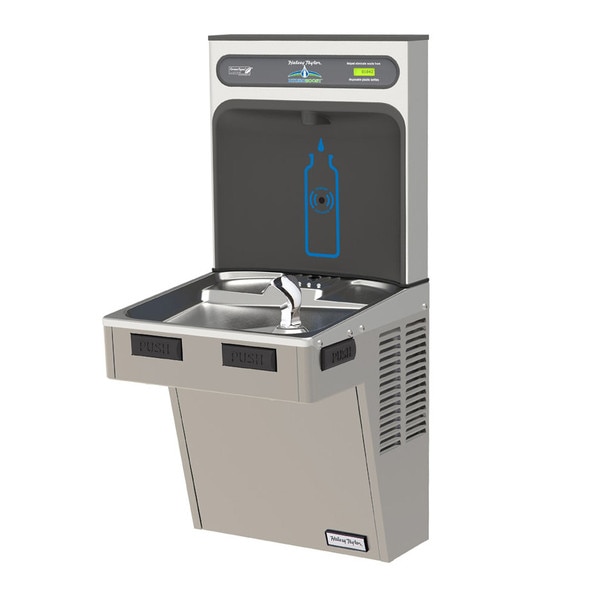

Halsey Taylor HTHB-HAC8PV-NF HydroBoost Bottle Filler & Single Cooler, Non-Filtered, Platinum
Details
The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Touchless, sensor-activated bottle filler, designed for easy use; mechanically-activated bubbler continues to supply water in service disruptions.
- Fill rate is 1.1 GPM.
- Green Counter™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.
Certifications:

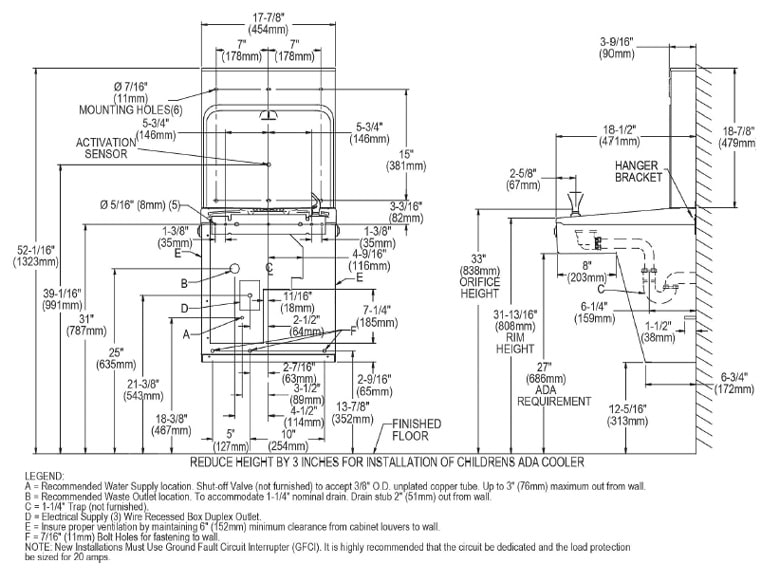

Measurement Diagram:
Specs
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain plus one (1) HydroBoost bottle filling station |
| Mount: | Wall / Surface |
| Operation: | One (1) automatic (infra-red sensor) bottle filler| and one (1) push button drinking fountain |
| Basin(s): | Alcove: Antimicrobial ABS Basin(s) Stainless Steel| Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Platinum) |
| Bubbler(s): | Halsey Taylor Double Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | 39-3/4" Tall x 17-7/8" Wide x 18-1/2" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height Box 2: 20-1/2" Length x 19-11/16" Width x 26-3/16" Height |
| Shipping Weight: | 69 lbs. |
| UPC / GTIN: | 94902042794 |
| Manufacturer Model No.: | HTHB-HAC8PV-NF |
| Included: | Water Cooler (8240081641-HTHB) Bottle Filler (HTHB-HAC-NF) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor HydroBoost® Bottle Filling Station & Single ADA Cooler, Non-Filtered 8 GPH Platinum Vinyl. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Mechanically Activated, Sanitary Sensor Activated, Green Counter™, Laminar Flow, Antimicrobial, Real Drain. Furnished with Double Bubbler ™. Electronic Bottle Filler Sensor With Mechanical Front And Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
