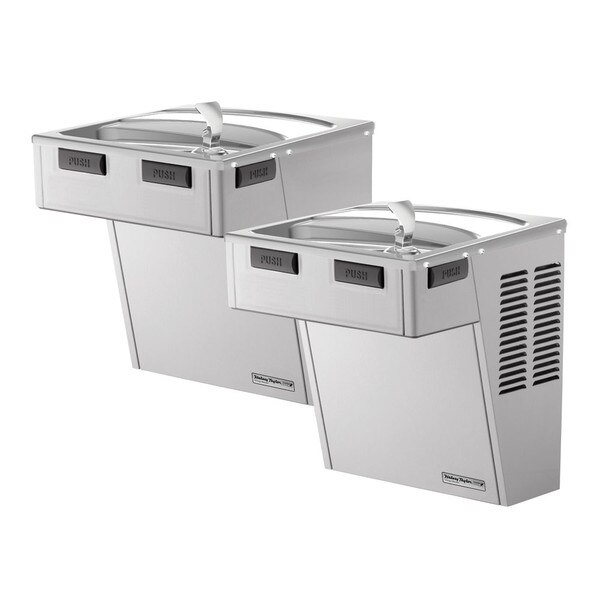

Halsey Taylor HAC8BLSS-NF Bi-Level ADA Cooler, Non-Filtered 8 GPH Stainless
Details
Mechanically-activated water cooler ideal for areas prone to service disruptions. Easy-to-operate front and side pushbar activation. Rated for indoor use.
Classic design fits well in all building designs.
Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
Mechanical bubbler push bars continue to provide water when electrical service is interrupted.
Double bubbler projects two separate streams that converge to form a fuller, more satisfying drink.
Stainless steel finish is corrosion resistant and attractive.
Provides refreshing, chilled water.
Certifications:

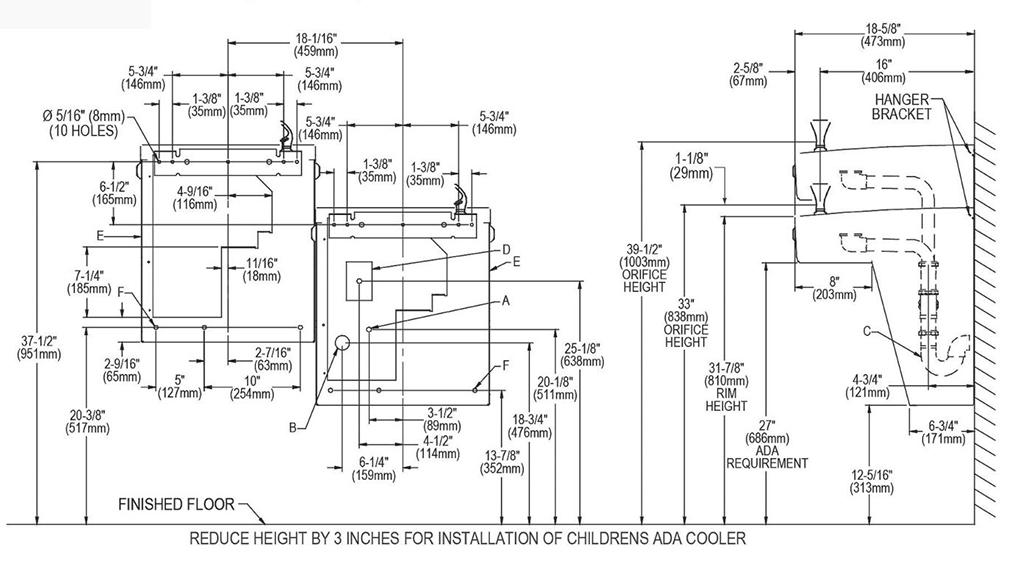

Measurement Diagram:
Specs
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains |
| Mount: | Wall / Surface |
| Operation: | Push button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Halsey Taylor Double Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 38" Tall x 21" Wide x 21" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 35.6" Length x 20.5" Width x 19.7" Height |
| Shipping Weight: | 89 lbs. |
| UPC / GTIN: | 94902100074 |
| Manufacturer Model No.: | HAC8BLSS-NF |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Halsey Taylor Wall Mount Bi-Level ADA Cooler Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Furnished with Double Bubbler ™. Mechanical Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
