IMPORTANT: This product will arrive on a pallet via Freight service. Please let us know if you will need a lift gate or have restricted access (add'l fees may apply).
The new Foundations 800SS-01 Ascent Universal Changing Table accommodates people with disabilities and their caregivers while supporting up to 500 pounds of weight. This diaper changing station is a high-performance, low-maintenance, easy-to-install solution purpose-built for public restrooms; .
This changing station features a 304 brushed stainless steel shroud with vacuum formed ABS changing surface. Two control button locations (on tray and side of shroud) for tray height adjustability (16” – 39” range) allow for easy height adjustment, ensuring effortless transfers and comfortable positioning. Battery backup provides safe use in power outage.
Easy Integration. Ascent's handy attached power cord plugs in directly to GFCI outlets/protected circuit or can be hardwired. Installation assembly is low-cost with Ascent's use in both existing and new construction applications. Easy, Low-Cost Installation: Ascent is able to mount to most existing walls, including concrete, concrete block, wood studs, and metal studs for quick setup, with no special teams, materials, or costly major construction required.
Depth from Wall Surface (Folded Closed): 9-1/2” (241.3 mm)
Depth from Wall Surface (Folded Open): 41” (1041.4 mm)
This changing station features a 304 brushed stainless steel shroud with vacuum formed ABS changing surface. Two control button locations (on tray and side of shroud) for tray height adjustability (16” – 39” range) allow for easy height adjustment, ensuring effortless transfers and comfortable positioning. Battery backup provides safe use in power outage.
Easy Integration. Ascent's handy attached power cord plugs in directly to GFCI outlets/protected circuit or can be hardwired. Installation assembly is low-cost with Ascent's use in both existing and new construction applications. Easy, Low-Cost Installation: Ascent is able to mount to most existing walls, including concrete, concrete block, wood studs, and metal studs for quick setup, with no special teams, materials, or costly major construction required.
Depth from Wall Surface (Folded Closed): 9-1/2” (241.3 mm)
Depth from Wall Surface (Folded Open): 41” (1041.4 mm)
- Overall table surface size: 76.6" x 34.75"
- Usable tray size: 70.5" x 30.125"
- Automated height adjustability range: 16" to 39"
- Supports up to 500 lbs.
- Includes a limited 5-year warranty
- Engineered, manufactured, and warranty serviced in the USA
Certifications:

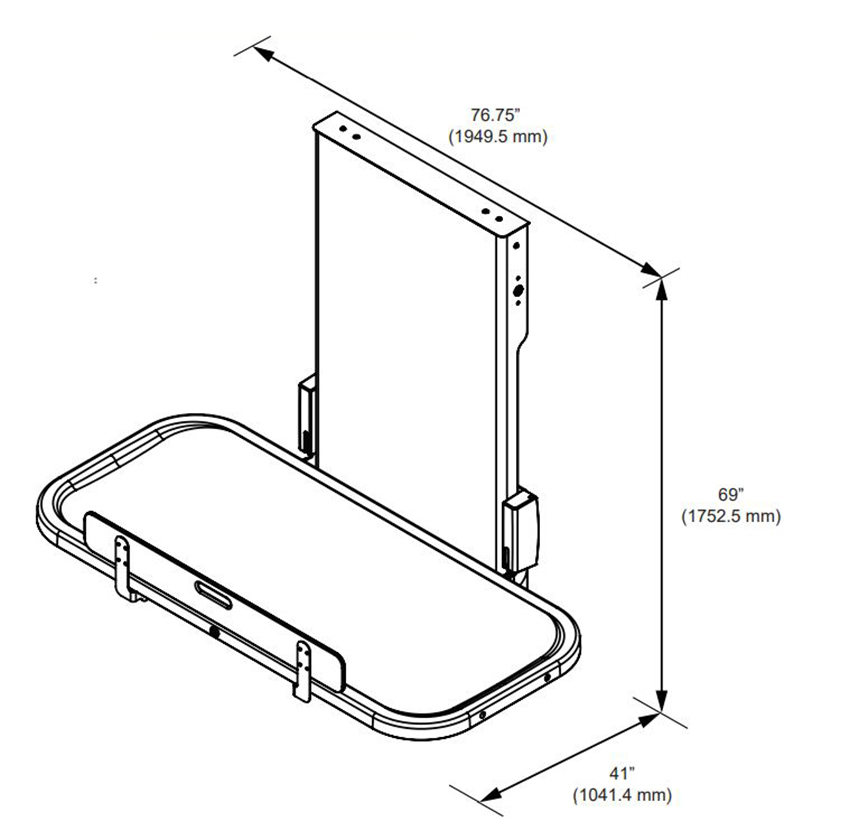

Measurement Diagram:
- Pre-Installation Guide for Foundations Ascent 800SS-01 Universal Changing Table
- Installation Guide for Foundations Ascent 800SS-01 Universal Changing Table
