NOTE: Does NOT work with XLERATOR® hand dryers without HEPA filter installed. For that part, see: XLP-40103.
The Excel Dryer 40105 replacement part control assembly is the latest version among the three available XLERATOR XL 7 control assemblies. This assembly is designed for the HEPA-equipped Excel XLERATOR hand dryers manufactured after 2015.

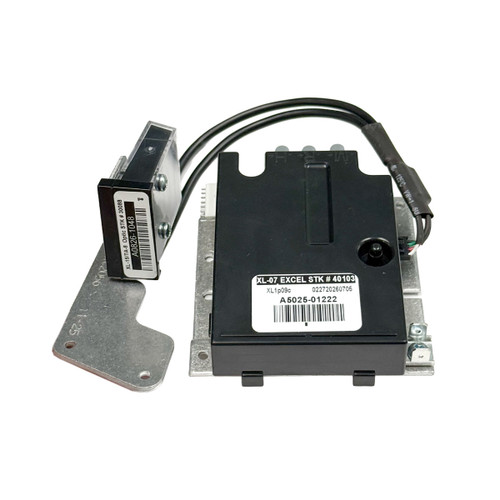

Includes the optic sensor (Part Ref. XL 15 / Stock #30088), the 40105 control circuit board, and both metal mounting brackets.
Similar to the 40103 and unlike the original 40102, the 40105 allows adjustments to motor speed, heating element output, and sensor sensitivity or range. However, the 40105 is calibrated and programmed for use with the newer HEPA XLERATOR units that feature a HEPA filter installed.
NOTE: Does NOT work with XLERATOR® hand dryers without HEPA filter installed. For that part, see: XLP-40103.
Includes the optic sensor (Part Ref. XL 15 / Stock #30088), the 40105 control circuit board, and both metal mounting brackets.
Similar to the 40103 and unlike the original 40102, the 40105 allows adjustments to motor speed, heating element output, and sensor sensitivity or range. However, the 40105 is calibrated and programmed for use with the newer HEPA XLERATOR units that feature a HEPA filter installed.
NOTE: Does NOT work with XLERATOR® hand dryers without HEPA filter installed. For that part, see: XLP-40103.
- Control Assembly & Sensor for use with Excel Dryer HEPA XLERATOR® Hand Dryer
- Rated for 110V to 277V.
- Includes MOTOR SPEED, HEAT, and SENSOR sensitivity controls
- AKA Excel Part Ref.: XL 7 in the diagram in the operating manual
