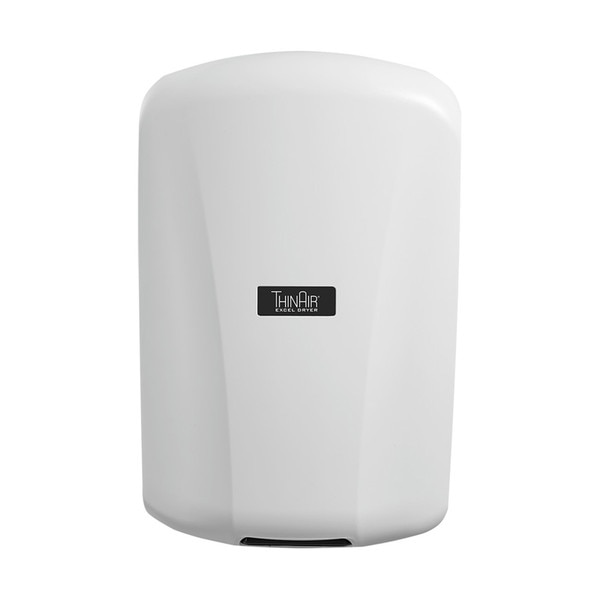

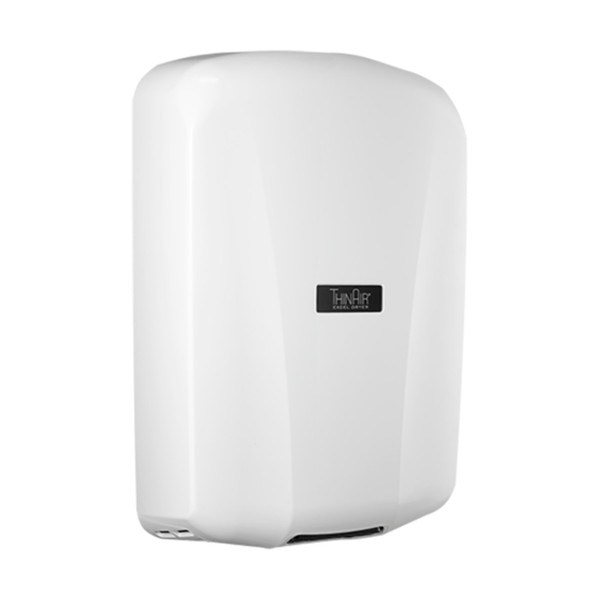

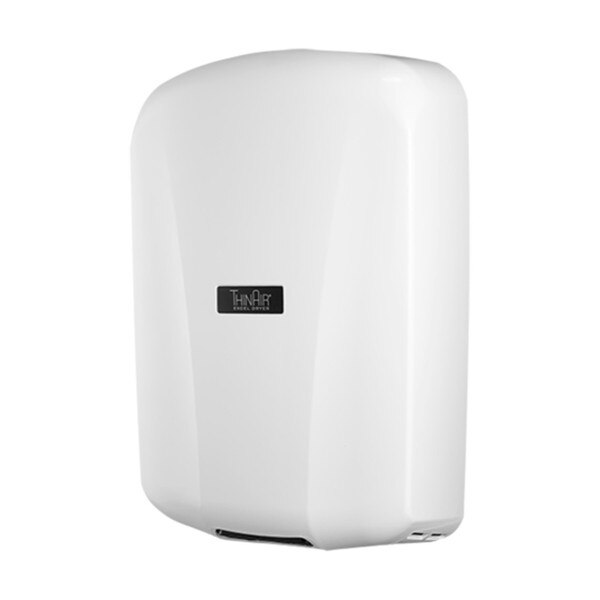

The ThinAir® Hand Dryer is a high-efficiency model that is surface-mounted and ADAcompliant.
ThinAir dries hands in 15 seconds, uses 950 watts or less (as low as 300 watts) and has a slimmer profile to meet ADA compliance standards.
The ThinAir Hand Dryer features adjustable speed and sound control, variable heat settings and a washable pre-filter.
- Meets 4" ADA protrusion guidelines to accomodate the visually impaired
- 80% Less Energy Than Conventional Dryers (300-950 Watts)
- 95% Cost Savings vs Paper Towels
- Made in USA Certified®
- 5-Year Limited Warranty
- Washable Pre-Filter
Certifications:

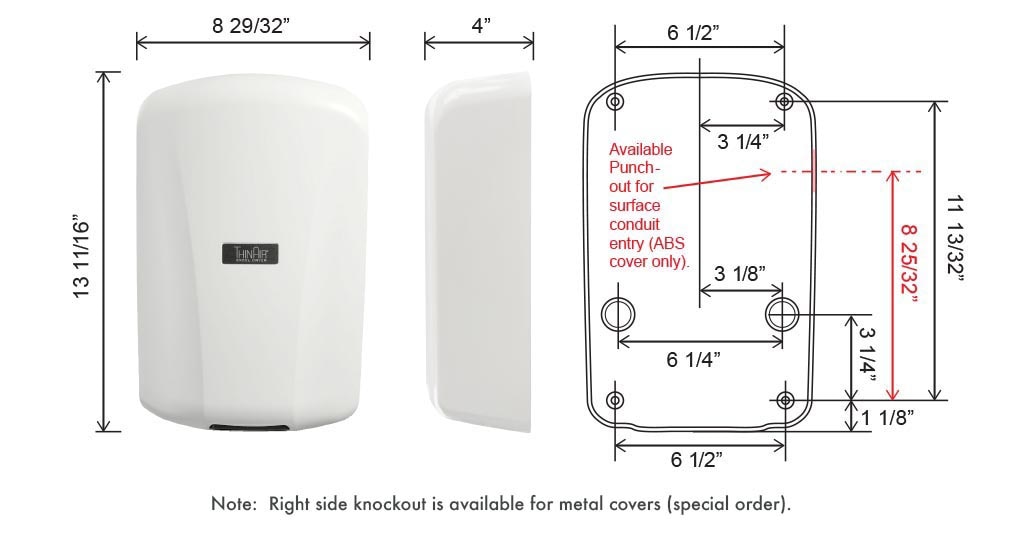

Measurement Diagram:
Architectural Specification:
CONSTRUCTION
A. All covers will be fastened to a base plate by one chrome plated tamper-proof bolt.
The cover shall be composed of:
ABS – White polymer with SanaForTM antimicrobial additive.
Stainless Steel – SB Brushed Stainless Steel finish.
SB-SI – Brushed Stainless Steel with Special Image.
Painted Covers – W, GR, SP, SI are epoxy paint over stainless steel.
B. Base plate shall be equipped with (3) 7/8" (22 mm) diameter knockouts, one of which is located on the upper right side and suitable for use with surface conduit.
C. All internal parts shall be coated according to Underwriters' Laboratories, Inc. requirements.
D. Entire mechanism shall be internally grounded, per UL requirements.
E. Accessories (optional)
Microban® Antimicrobial Wall Guards: 89W (White), 89B (Black)
Antimicrobial Wall Guard: 89S (Brushed Stainless Steel)
MECHANISM
A. Motor shall be a thermally protected, series commutated, through-flow discharge vacuum motor/blower (½ hp / 31,000 rpm) which provides air velocity of up to 18,000 LFM (linear feet per minute) at the air outlet. Includes a washable metal mesh filter for more reliable performance.
B. Heating element (550 W) is constructed of Nichrome wire and mounted inside the blower housing behind air baffle, thereby being vandal resistant. It shall be protected by an automatic resetting thermostat, which shall open whenever air flow is cut off and shall close when flow of air is resumed. It shall produce an average air temperature at the outlet of up to 135°F (57°C) at a 72°F (22°C) ambient room temperature.
C. Control assembly is activated by an infrared optical sensor located next to the air outlet.
The dryer shall operate as long as hands are under the air outlet. Control includes a speed and sound control mechanism, adjustable heat control with High, Medium, Low and Off settings and a filter sensor which is activated should the filter become clogged. There is a 35-second lockout feature if hands are not removed. Sensor equipped with externally visible red LED that can flash error codes to assist in troubleshooting.
