Excel XLERATOR Part Stock # 1410W Sub Assembly on Wall Plate, 110-120V

(0) No Reviews yet
SKU: XLP-1410W


5 available for immediate shipment

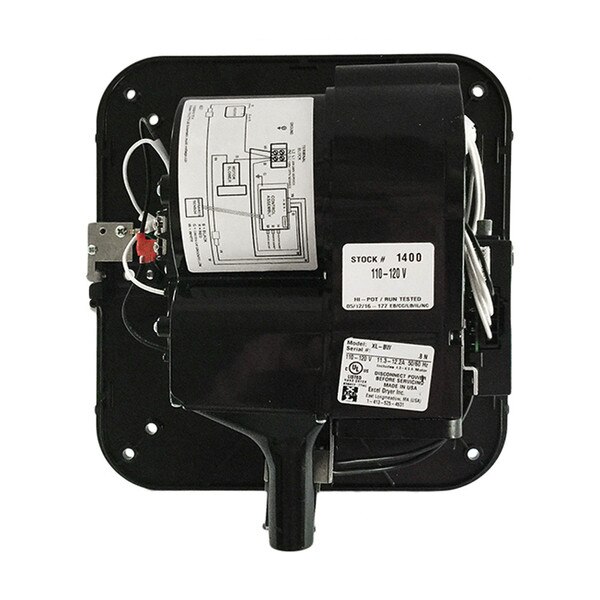

Complete chassis and back plate for XLERATOR, 110-120V. Includes everything except for the cover.

Compatible with any XLERATOR cover.

Replaces Elkay Parts 40200 and 40210 (which are discontinued).

Cover: None
Mount: Surface Mount, Optional Recessing Kit available (XLP-40502, purchased separately)
Reported Dry Time: 8 Seconds
Nozzle: Concentrated Single Port, 0.8" Diameter, for fastest drying
Activation: Automatic (infra-red sensor) Touch-Free
Power: 110-120V 50/60Hz, 11.3A to 12.2A (1240-1450 Watts Adjustable)
Motor: High pressure universal brush type. Replaceable motor brushes.
Fan: Thermally protected, series commutated, through-flow discharge vacuum motor/blower (5/8 hp / 20,000 rpm)
Air Speed: 19,000 LFM
Heating Element: Heating element (950 W) is constructed of Nichrome wire and mounted inside the blower housing behind air baffle, thereby being vandal resistant.
Filter: Coarse metal mesh filter (washable)
IP Rating: IPX3 (Water Ingress Level 3) WITH COVER INSTALLED
Overall Dimensions: 11-7/8" Wide x 12-11/16" Tall x 6-11/16" Deep (WITH COVER INSTALLED)
Net Weight: 8.3 lbs.
Shipping Dimensions: 15" Length x 14" Width x 11" Height
Shipping Weight: 9 lbs.
Warranty: 3 Year Manufacturer's Limited
Country of Manufacture: US
Additional Comments: Adjustable motor speed, heat, and sensor range
