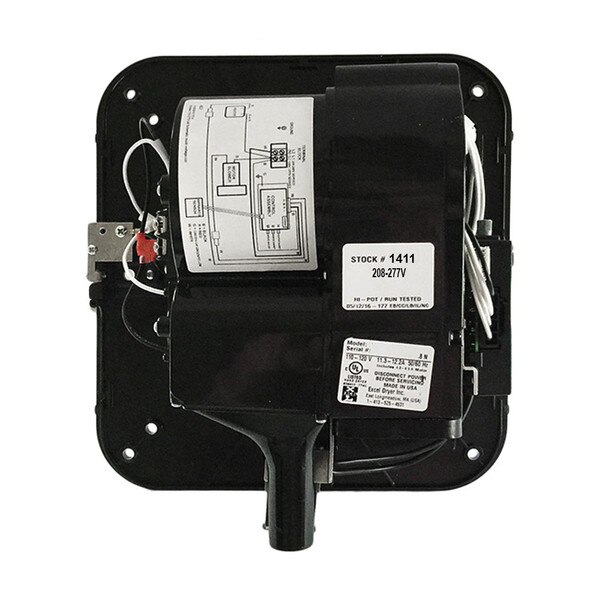

Excel XLERATOR Part Stock # 1411 Sub Assembly on Wall Plate, 208-277V
Details
Complete chassis and back plate for XLERATOR, 208-277V. Includes everything except for the cover.
Compatible with any XLERATOR cover.
Replaces Elkay Parts 40201, 40202, and 40203 (which are discontinued).Specs
| Cover: | None |
| Mount: | Surface Mount, Optional Recessing Kit available (XLP-40502, purchased separately) |
| Reported Dry Time: | 8 Seconds |
| Nozzle: | Concentrated Single Port, 0.8" Diameter, for fastest drying |
| Activation: | Automatic (infra-red sensor) Touch-Free |
| Power: | 208-277V 50/60Hz, (1240-1450 Watts Adjustable) |
| Motor: | High pressure universal brush type. Replaceable motor brushes. |
| Fan: | Thermally protected, series commutated, through-flow discharge vacuum motor/blower (5/8 hp / 20,000 rpm) |
| Air Speed: | 19,000 LFM |
| Heating Element: | Heating element (950 W) is constructed of Nichrome wire and mounted inside the blower housing behind air baffle, thereby being vandal resistant. |
| Filter: | Coarse metal mesh filter (washable) |
| IP Rating: | IPX3 (Water Ingress Level 3) WITH COVER INSTALLED |
| Overall Dimensions: | 11-7/8" Wide x 12-11/16" Tall x 6-11/16" Deep (WITH COVER INSTALLED) |
| Shipping Dimensions: | 15" Length x 14" Width x 11" Height |
| Shipping Weight: | 9 lbs. |
| Warranty: | 3 Year Manufacturer's Limited |
| Country of Manufacture: | US |
| UPC / GTIN: | Not published. |
| Additional Comments: | Adjustable motor speed, heat, and sensor range |
