Elkay Sturdibilt Floor Mount Scullery Sink. Single Basin with Backsplash. No Drainboard. Overall Dimensions: 27" wide x 27-1/2" front to back x 44" tall. Features #14 gauge, type 304 stainless steel construction. Basin Dimensions: 24" wide x 24" front to back x 14" deep. Square corner welded construction. Full length 8" high backsplash with 45 degree sloped top. 1-1/2" wide sloping top channel rims. Exposed surfaces polished to a #4 architectural satin finish. Sink, supported on (4) LK251 stainless steel, 1-5/8" O.D. tubular legs, #16 gauge wall thickness. Adjustable bullet shaped feet.
- 14-gauge, Type 304 stainless steel
- Square corner welded compartment construction
- Distinctive channel rim design with 2" apron minimizes spillover
- 14" deep compartments
- 8" high, full-length backsplash with 45-degree slope to resist grime
- 3-1/2" drain opening

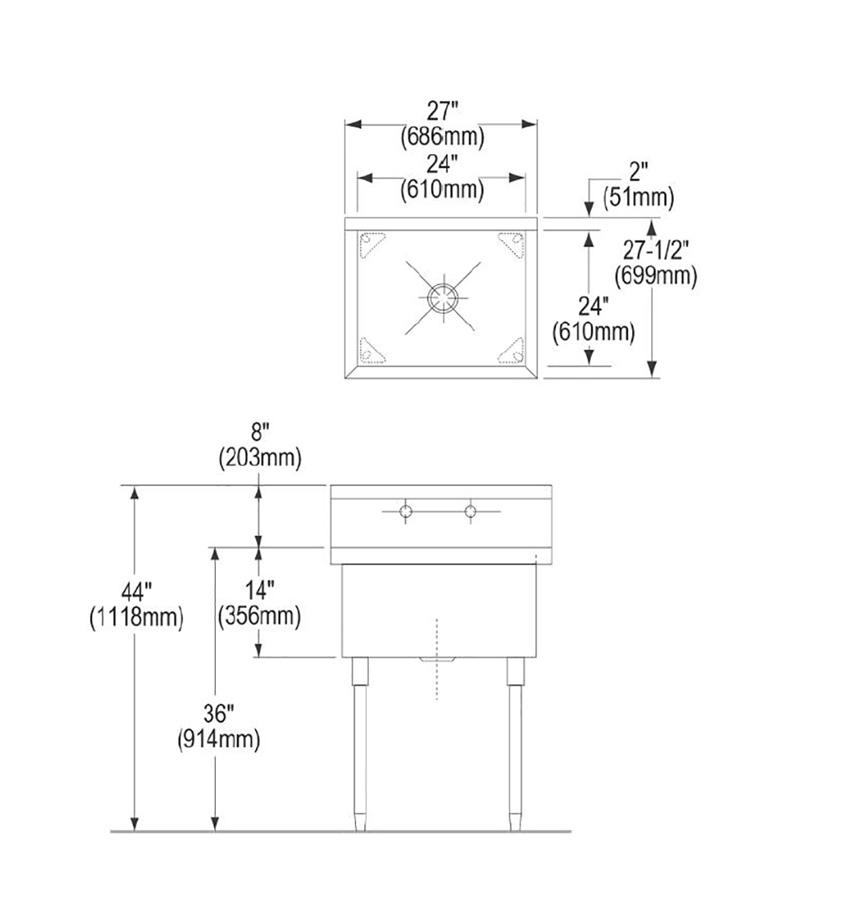

Measurement Diagram:

Architectural Specification:
Elkay Sturdibilt Stainless Steel 27" x 27-1/2" x 14" Floor Mount, Single Compartment Scullery Sink. Sink is manufactured from 14 gauge 304 Stainless Steel with a Buffed Satin finish, Center drain placement. Sinks supported by (4) 16 gauge stainless steel, 1-5/8” O.D. tubular legs with bullet shaped feet adjustable up to 1”.
