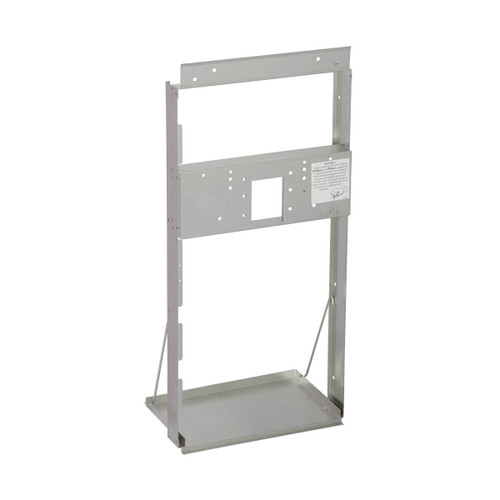

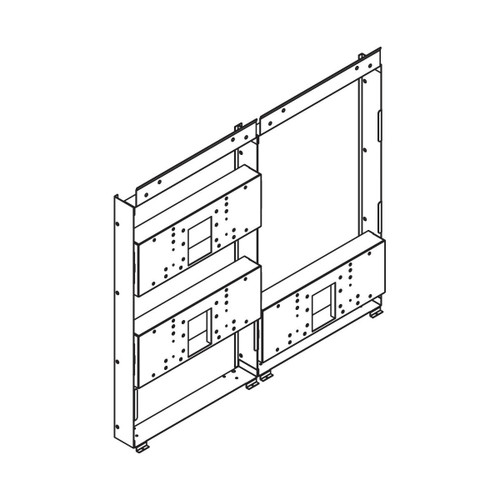

This mounting frame is used with Elkay (and Halsey) in-wall, single station, refrigerated bottle filling stations whose model number begins with EZWS, LZWS, or HTHB.
NOTE: In some instances this frame will be included with the bottle filler, so be sure to check before ordering. Why isn't it always included? For some projects it is advantageous to order the mounting frame for use during earlier stages of construction without the need to store the main unit until needed (also preventing potential damage or loss).
Rough-In: 37-1/2” (953mm) W x 37-3/4” (959mm) H and 4-1/2” (114mm) above the floor line. NOTE: Building construction must allow for adequate air flow on both sides and top of remote chiller unit. Minimum of 4” (102mm) is required.
- Heavy duty galvanized steel construction
- Secures directly to a variety of load-bearing surfaces
- Mounting frame included with specific models.
- Secures directly to a variety of load-bearing surfaces.
- Refer to end product for ADA compliance information.
