Elkay Part AP99 Access Panel 9" x 9" x 6"
Details
 | Elkay access panel AP99 is for use when rear access to drinking fountain is restricted. |

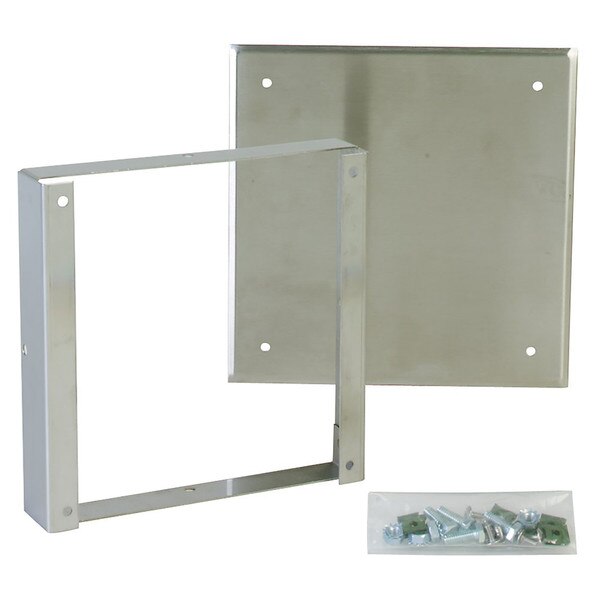

The Elkay AP99 Access Panel provides access to plumbing connections (i.e. water supply and drain) for a drinking fountain or bottle filling station. Includes Panel (55000966), Steel Plate (74080057), and Speed Nut (70055C)
Gives access to interior of wall

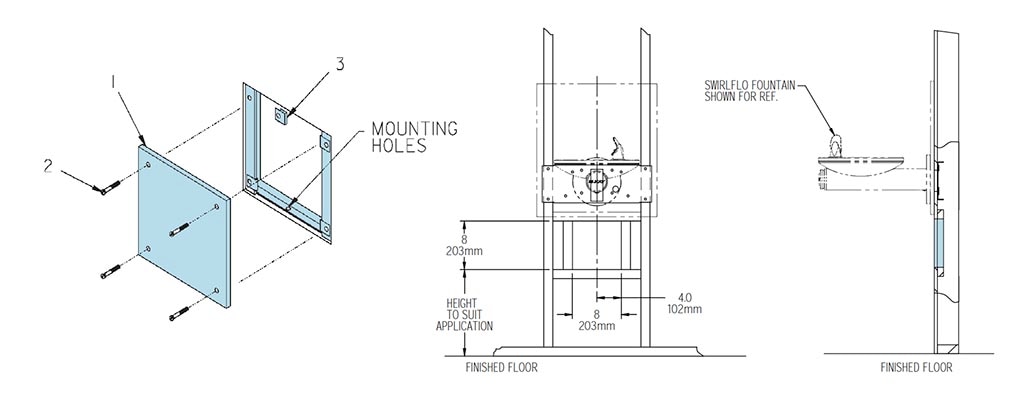

INSTALLATION:
1. Position clips (4) on frame's flanges (flat side Of clips to be toward front).
2. Place access panel frame into 8" x 8" (203 mm x 203 mm) Wall opening. Note: position with flanges on the left And right sides of the opening. Face of frame should Be flush with or maximum 7/8" (22 mm) behind finished wall.
3. Secure frame in place through mounting holes. (fasteners provided by others).
4. Place access panel over frame and secure in place Using (4) hex socket screws. Note: installation of These screws will require the use of an allen wrench. (wrench not furnished).
Specs
| Manufacturer Part No.: | AP99 |
| Product Dimensions: | L: 9" W: 9" H: 6" |
| Finish: | Stainless Steel |
| Shipping Dimensions: | L: 12" W: 12" H: 6" |
| Shipping Weight: | 9 lbs |
