IMPORTANT: This sensor is for the bottle filler portion of the units listed below. If you are looking for the pushbar sensor found in EZO and LZO series fountains, see Elkay part: 36028C.

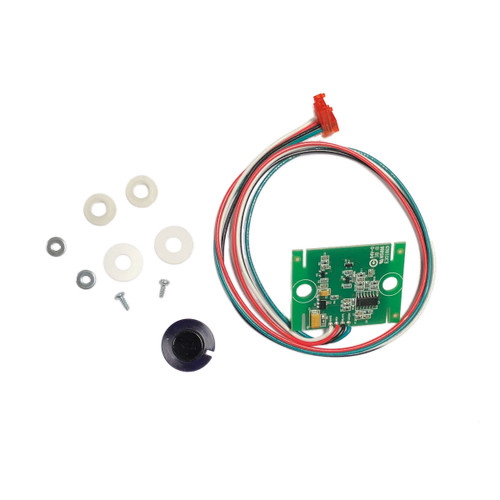

Sensor activation service kit for EZH2O and Hydroboost bottle filling stations.
For use in the following models:
> EZS8WSLK, EZSTL8WSLK, EZS8WSSK, EZSTL8WSSK
> EZO8WSLK, EZOTL8WSLK, EZO8WSSK, EZOTL8WSSK, EZWSSM
> LZS8WSLK, LZSTL8WSLK, LZS8WSSK, LZSTL8WSSK
> LZO8WSLK, LZOTL8WSLK, LZO8WSSK, LZOTL8WSSK, LZWSSM
> HTHB-HACDPV-NF, HTHB-HACDPV-WF
> HTHB-HAC8PV-NF, HTHB-HAC8PV-WF
> HTHB-HACG8PV-NF, HTHB-HACG8PV-WF
> HTHB-HACDBLPV-NF, HTHB-HACDBLPV-WF
> HTHB-HAC8BLPV-NF, HTHB-HAC8BLPV-WF
> HTHB-HACG8BLPV-NF, HTHB-HACG8BLPV-WF
Works in 110-120V as well as 220-240V bottle fillers.
Does *not* work in "Enhanced" EZH2O bottle filling stations. For enhanced bottle fillers with serial numbers BELOW 190424189 you would need LKP-1000002434 sensor kit, however that part is now obsolete. For enhanced model serial numbers ABOVE 190424189 see LKP-1000005219.
NOTE: If you need the main board, that is available only as part of a kit which includes all three: Alpha numeric display (main) board, sensor board, and the LED filter status light board.
