  • Elkay Part (56192C) In-line filter cartridge (for LF2 and LMASMB)

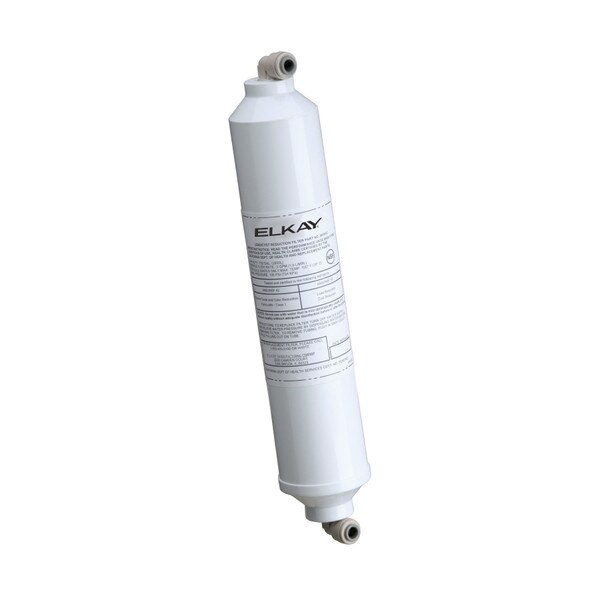

Elkay Part (56192C) In-line filter cartridge (for LF2 and LMASMB)

(0) No Reviews yet
$79.60
SKU: LKP-56192C

IN STOCK

4 available for immediate shipment

Works with LF2 and LMASMB. Will NOT replace 51299C, 51300C, or WSF600R.

Easy coupling John Guest (shark tooth) connectors on both sides make installation and replacement simple. Hands never touch the actual filter media and, therefore, limit the potential for introduction of bacteria. Outer protective wrap. Spun Polypropylene pre-filter mesh to prevent large, coarse sediment and particles from entering and clogging filter media.

High-grade filter is made with activated carbon and patented ATS lead-removal media. Radial flow-thru design provides more surface area for untreated water while final filter mesh prevents loose carbon from entering water.


  • 500 Gallon Capacity

  • NSF 42, NSF 53, NSF 372 (lead free) Rated

  • Designed to reduce cysts such as cryptrosporidium and giardia, lead, particles and chlorine. Also reduces odors and discoloration from incoming water.



Measurement Diagram:


Overall Dimensions: 2" Diameter x 11-1/2" Long
Net Weight: 1 lbs.
Shipping DImensions: 4" Width x 4" Length x 13" Height
Shipping Weight: 2 lbs.
Capacity: 500 gal. (1893 L)
Flow Rate: 0.5 GPM (1.9 L/m)
Temperature Range: 35-100°F (2-38°C)
Initial Pressure Drop: 2-5 PSI (14-34 kPa)
Maximum Pressure: 100 PSI (689 kPa)
Minimum Pressure: 20 PSI (138 kPa)
Water Inlet: 1/4” (6.4mm) O.D. tube
Water Outlet: 1/4” (6.4mm) O.D. tube
Product Compliance: NSF 42, NSF 53, NSF 372 (lead free)
Manufacturer Part No.: 56192C
UPC / GTIN: 094902343105
