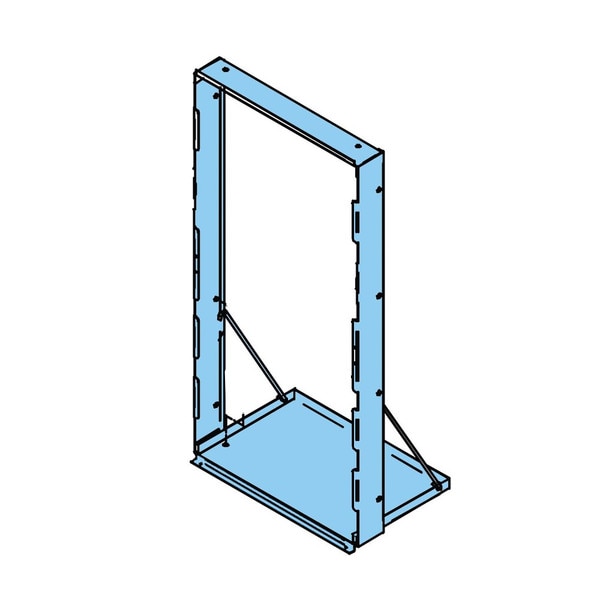

Elkay Part MFWS100 Single Width Galvanized Mounting Frame for In-Wall Bottle Fillers & Fountains
Mounting Frame for Single-station In-wall Refrigerated Bottle Filling Stations. Overall dimensions are 18-3/4" x 12" x 40". Made of Galvanized Steel.
Single-station mounting frame enables installation of in-wall drinking water models.
Compatible with various refrigerated models.
Mounting frame included with specific models.
Secures directly to a variety of load-bearing surfaces.
Refer to end product for ADA compliance information.
| Brand: | Elkay |
| Manufacturer Model No.: | MFWS100 |
| Type: | In-Wall Mounting Frame |
| Compatibility: | For use with Elkay and Halsey Taylor models: EZWS-SFGRN28K, EZWS-SFGRN8K, EZWSM8K, EZWSM8PK, EZWSMDK, EZWSMDPK, HTHBGRN8-WF, LZWS-SFGRN28K, LZWS-SFGRN8K, LZWSGRNM8K, LZWSM8K, LZWSM8PK, LZWSMDK and LZWSMDPK. |
| Included: | One (1) single-wide mounting frame |
| Overall Dimensions: | 18-3/4" Wide x 40" Tall x 12" Deep |
| Shipping Dimensions: | 44-1/2" Length x 23-1/4" Width x 4-1/2" Height |
| Shipping Weight: | 15 lbs. |
| UPC / GTIN: | '094902623542 |
| Country of Manufacture: | USA |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Mounting Frame for Single-station In-wall Refrigerated Bottle Filling Stations. Overall dimensions are 18-3/4" x 12" x 40". Made of Galvanized Steel.
Special Note: For use with single-station in-wall refrigerated bottle filling stations.
