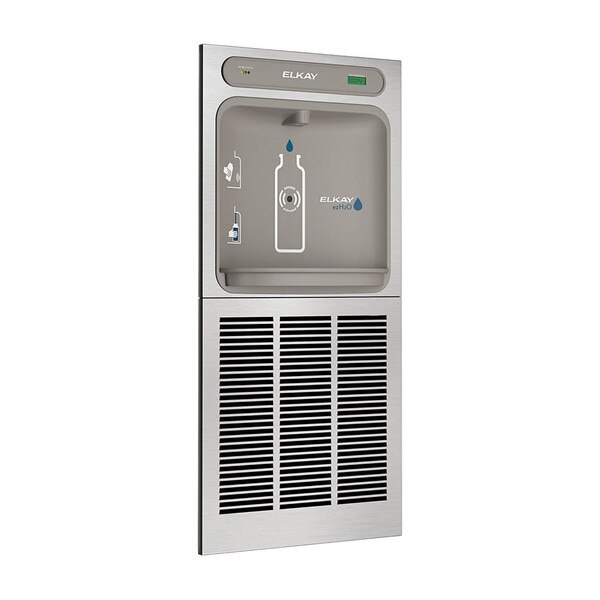

Elkay LZWSM8K In-Wall, Filtered, Refrigerated, EZH2O Bottle Filling Station

(0) No Reviews yet


33 available for immediate shipment

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.

  • Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains.
  • Touchless, sensor activation (bottle filler) designed for easy use.
  • Fill rate is 1.1 GPM.
  • Visual filter monitor with LED filter status indicator for when filter change is necessary.
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
  • Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.

This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.

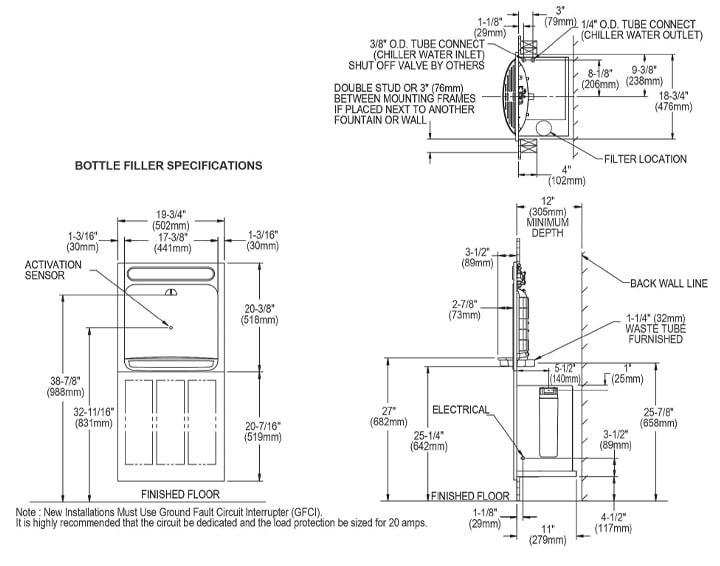

Measurement Diagram:

Installation Location: Indoor
Number of Stations: One (1) EZH2O bottle filling station
Mount: Wall / Recessed
Operation: Automatic (Infra-red sensor)
Basin(s): Antimicrobial ABS alcove with Stainless Steel Grate
Cabinet(s): Stainless Steel, Brushed Finish
Bubbler(s): None
Cooled: Yes
Filtered: Yes | Replacement filter 51300C
Power: 110-120V (Standard)
Status Display: Filter Status Indicator (Green/Yellow/Red)
Green Ticker Display (Counts bottles saved from waste)
Overall Dimensions: 40-13/16" Tall x 19-3/4" Wide x 3-1/2" Deep
Rough-in: 37-3/4" Tall x 18-3/4" Wide x 12" Deep
Shipping Dimensions: Box 1: 12-1/2" Length x 15-1/2" Width x 22" Height
Box 2: 28-1/4" Length x 24-1/4" Width x 12-1/2" Height
Box 3: 14" Length x 13-11/16" Width x 4-3/16" Height
Box 4: 23-1/4" Length x 4-1/2" Width x 44-1/2" Height
Shipping Weight: 80 lbs.
UPC / GTIN: '094902586960
Manufacturer Model No.: LZWSM8K
Country of Manufacture: USA
Warranty: Refrigeration: 5 Yr. Manufacturer's Limited
All Other.: 1 Yr. Manufacturer's Limited


California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:

Elkay ezH2O® In-Wall Bottle Filling Station with Mounting Frame, Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (In-wall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
