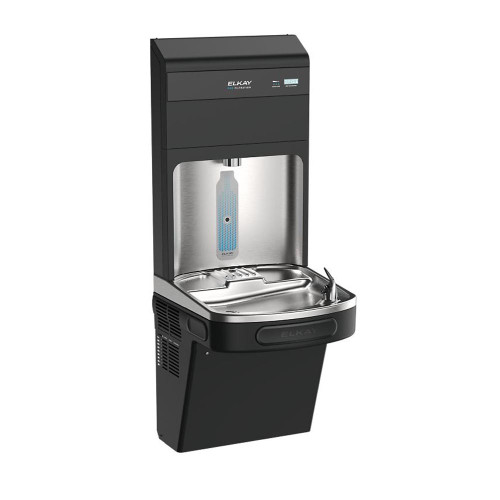

This is the new generation of bottle filling stations from Elkay. The Pro Filtration series products are designed specifically around a completely new line of Pro water filters with enhanced filtering capabilities. This model takes advantage of an ultra-capacity 10,000 gallon cartridge that filters lead and microplastics. You can see more about it here: FL10 Ultra Capacity Filter.
The reconfigured cabinets make filter monitoring and filter changes incredibly quick and easy. Usually less than a minute from start to finish! Listening to their customers, Elkay made the filter inlet off center so that there is only one orientation they can be installed in, ensuring that the automatic filter detection will always work. These fountains are even set up to pre-flush new filters so that they are ready for immediate use.
Beautiful sleek black styling attracts attention and sets these apart from run-of-the-mill fountains and bottle filling stations by others.
- High-Performance System: Pairs exclusively with Elkay Pro Filtration filters to deliver safer drinking water
- Faster Filter Changes: Replace filters easily and more efficiently at the top of the unit
- Ultra-Capacity Filter Included: Elkay Pro Filtration 10,000-gallon filter is tested and certified to NSF/ANSI 42, 53, 372 and 401 to reduce lead, microplastics and more; ideal for high-traffic areas
- Automatic Filter Recognition: Elkay Pro Filtration system recognizes new filter and automatically resets filter status lights, shortening installation time
- Elevated Design: Sleek, architectural design takes up little space and features innovative functionality for a minimalist, modern aesthetic
- Quick Fill: Bottle fill rate and filter flow rate match at 1.1 GPM for a quick fill, and laminar flow feature minimizes splash, while providing a clear stream of water
Connected Ready: Save time and resources with connected technology that helps anticipate maintenance needs remotely; flush units and monitor filter status and water usage from anywhere
Certifications:
Measurement Diagram:
Architectural Specification:
Elkay Pro Filtration® Bottle Filling Station & Single ADA Cooler Refrigerated Ultra-Capacity Lead Reduction. Chilling Capacity of 8.0 GPH (gallons per hour) of 50° F drinking water, based on 80° F inlet water and 90° F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Automatic Filter Status Reset, Energy Savings, Filtered, Green Ticker™, Hands Free, Laminar Flow, Real Drain, Visual Filter Monitor, Alcove Light, Automatic Filter Flush, Stainless Steel Alcove, Pro Filtration System, Top Mount Quick Filter Change. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120
Warnings:
