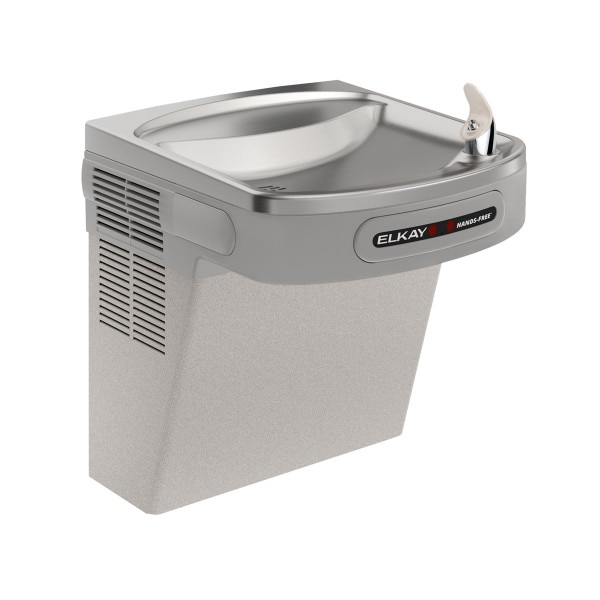

Elkay LZODL Hands-Free Drinking Fountain Wall Mount, ADA, Light Gray Granite (Non-refrigerated, Filtered)
Details
 | IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses. |
The Elkay EZ models are Elkay's most popular water cooler series. This model offers sensor-activated controls and come standard with a Flexi-Guard® Safety Bubbler. The extra deep basin minimizes splashing and features an integral drain. Electronic Sensor Operation: On-Off solenoid valve is actuated by an infra-red lightbeam sensor. When lightbeam is interrupted by subject in front of cooler desiring a drink, the sensor actuates the solenoid valve which then opens to allow water flow. No physical contact with cooler is required. A built in time delay is provided to prevent actuation by persons moving past cooler. There is a maximum running time of 30 seconds to prevent malicious damage to the cooler or water damage if sensor vision is blocked. Unit automatically resets when blockage is removed.
Touchless, sensor-activated units are designed for easy use and improved hygiene.
Attractive, contemporary design matches modern architecture.
Exclusive fastenerless integrated drain reduces debris accumulation and is easy to clean.
Filter system certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
Filtered units display filter status for easy notification of expiration.
Vinyl clad finish is durable and attractive.
This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
Certifications:

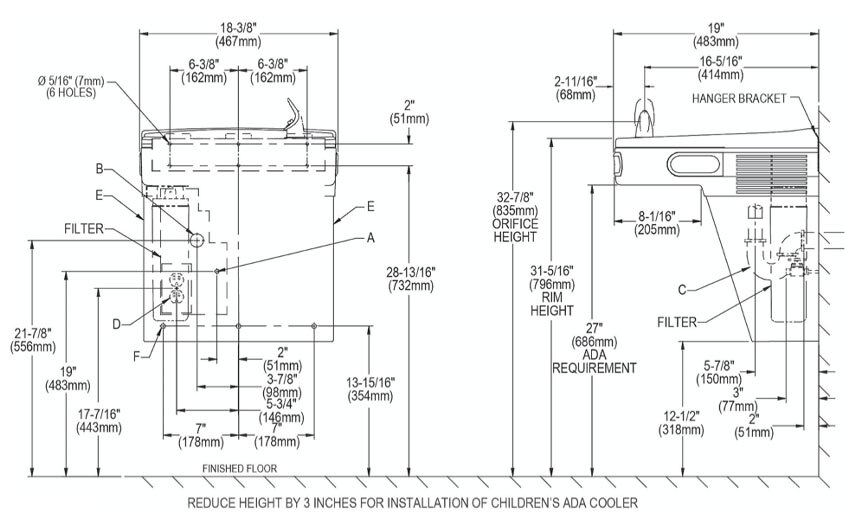

Measurement Diagram:
(L-S).jpg "Measurements for Elkay LZODL")
Specs
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountain |
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red sensor) |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Vinyl Clad Steel (Light Gray Granite) |
| Bubbler(s): | FlexiGuard Safety Bubbler |
| Cooled: | No |
| Filtered: | Yes | Replacement filter 51300C |
| Power: | 110-120V, 60Hz, < 100 Watts |
| Status Display: | None |
| Overall Dimensions: | 18-3/8" Wide x 19" Deep x 19-13/16" Tall |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 20-1/2" Length x 19-11/16" Width x 24-3/8" Height |
| Shipping Weight: | 39 lbs. |
| UPC / GTIN: | 94902434889 |
| Manufacturer Model No.: | LZODL |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay Wall Mount Hands-free Activation ADA Cooler Filtered Non-refrigerated Light Gray Granite. Features shall include Filtered, Hands Free, Visual Filter Monitor. Furnished with Flexi-Guard ® Safety Bubbler. Electronic Sensor Bubbler activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
