This Elkay EZH2O® Retrofit Kit will add a hands free bottle filler to a standard Elkay EZ or LZ single or bi-level drinking fountain. Installation involves removing the existing basin (on the master side for bi-level fountains) and then installing this kit in it's place. See the installation guide for more details.
For compatibility, there are too many models to list, but some common ones are: EZS8L, EZS8S, EZSDL, LZS8L, EZSTL8LC, LZSTL8LC, EZSDS, EZSTLG8SC, etc. It will not work for other models of water cooler like the VRC, LVRC, EMABF, or LMABF series of fountains. For those, see our Bottle Filler Retrofit Kit listings.
NOTE: If you already have a filtered water fountain, this retrofit kit will not include a filter status indicator. For that, we recommend the LZSWRK which does.
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Designed to retrofit existing 115V pushbar-activated EZ style water coolers. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Touchless, sensor activation (bottle filler) designed for easy use; retrofits existing EZ 115V style coolers.
- Fill rate is 1.5 GPM.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.
Certifications:

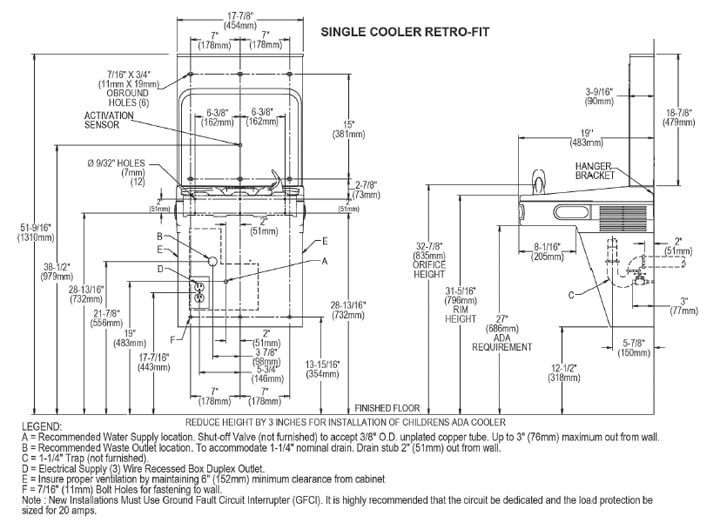

Measurement Diagram:
Architectural Specification:
Elkay ezH2O® RetroFit Bottle Filling Station Kit for EZ Family, NonFiltered Non-Refrigerated. Features shall include Antimicrobial, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
