NOTE: This product does NOT include the MFWS100 mounting frame which is assumed to have been purchased and installed BEFOREHAND.
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Fully recessed in-wall design.
Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains.
- Touchless, sensor activation (bottle filler) designed for easy use.
- Fill rate is 1.1 GPM.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Requires mounting frame MFWS100 which is ordered seperately for early installation
Certifications:

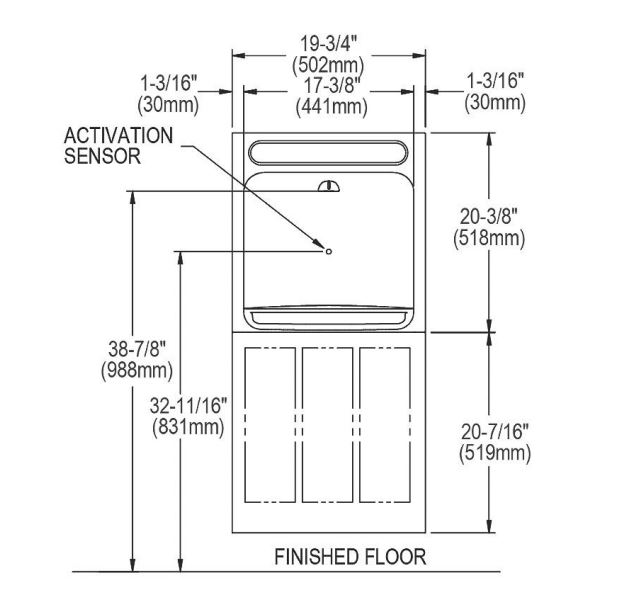

Measurement Diagram:
Architectural Specification:
Elkay ezH2O® In-Wall Bottle Filling Station Non-Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial*, Green Ticker™, Hands Free, Laminar Flow, Real Drain. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (Inwall Frame/Plate), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
Warnings:
