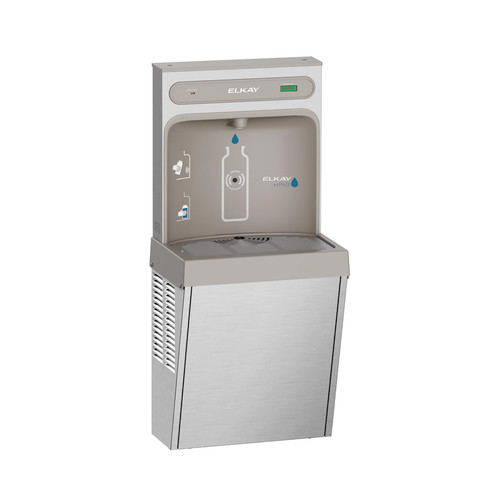

Elkay presents a refrigerated, touchless, surface mounted, bottle filler with no drinking fountain, and a slimmer profile than the standard Elkay water coolers.
This is a bottle filling station only. Since there is no bubbler, the user cannot drink directly from this cooler. If you would like the standard bottle filling station with a bubbler, please see the EZS8WSLK.
The Elkay ezH2O® refrigerated surface mount bottle filling station delivers a convenient, clean, quick water bottle fill and enhances sustainability by minimizing dependency on disposable plastic bottles.
A prominent Green Ticker informs everyone of the number of 20 oz. plastic water bottles saved from waste which also promotes environmental awareness.
A slim one-foot projection creates a slimmer profile for installations with limited space.
Hands-Free operation with no bubbler for maximum hygiene and minimum cross-contamination.
NOTE: The Elkay EZ8WSSSMC bottle filler fits in the same footprint as other Elkay water coolers and is rough-in replacement compatible with EZ, LZ, EMAB and LMAB Elkay models.
- Stainless steel cabinet and bottle filler surround. Easy care ABS alcove and basin surround.
- No bubbler.
Reduced 12" wall projection. - Stainless steel grate removable for easy basin cleaning. Real drain system eliminates standing water.
- Hygienic touchless operation (IR sensor activation)
- 1.1 GPM fill rate with laminar flow to fill quickly, but with minimized splashing
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
Certifications:
Measurement Diagram:
Architectural Specification:
Elkay ezH2O® Refrigerated Surface Mount Bottle Filling Station, NonFiltered 8GPH Stainless Steel. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Hands Free, Laminar Flow, Real Drain. Electronic Bottle Filler Sensor activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
Warnings:
