Elkay (EWS2520SACTMC) Wall Hung Sink, Sensor Faucet Package, SS, 25" W x 19.5" H

(0) No Reviews yet
$2,324.37
SKU: EWS2520SACTMC

This item will ship from the manufacturer in about 8 days.

This item will ship in multiple boxes.

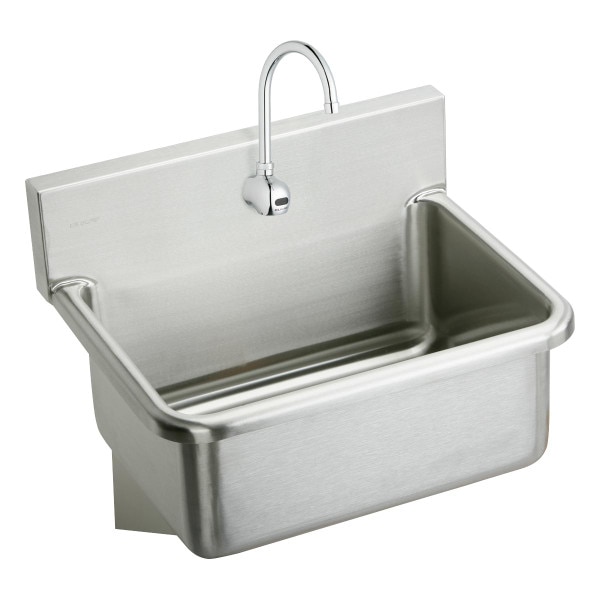

Elkay heavy duty stainless steel wall hung scrub and handwash station. Rounded front corners for improved ergonomics and safety. Includes EWS2520 sing and LKB722C hands free (touchless) faucet with LK723 thermostatic mixing valve. Overall dimensions are 25" wide x 19.5" projection x 10-1/2" high. Bowl dimensions are: 22" wide x 16" front to back x 10-0/2" Deep. Manufactured from 14 gauge 304 Stainless Steel with a #4 architectural satin finish. Rear center drain placement. Drain size is 3-1/2”. AC plug-in adapter and 4 AA batteries included.


  • 14-gauge, Type 304 stainless steel

  • 1-3/4" radius coved corners

  • 1-1/2" rolled rims

  • Sound-deadening material minimizes sound and vibration for a quieter time at the sink

  • Exposed surfaces are blended by hand to a uniform lustrous satin finish

  • 3-1/2" drain opening



Certifications:

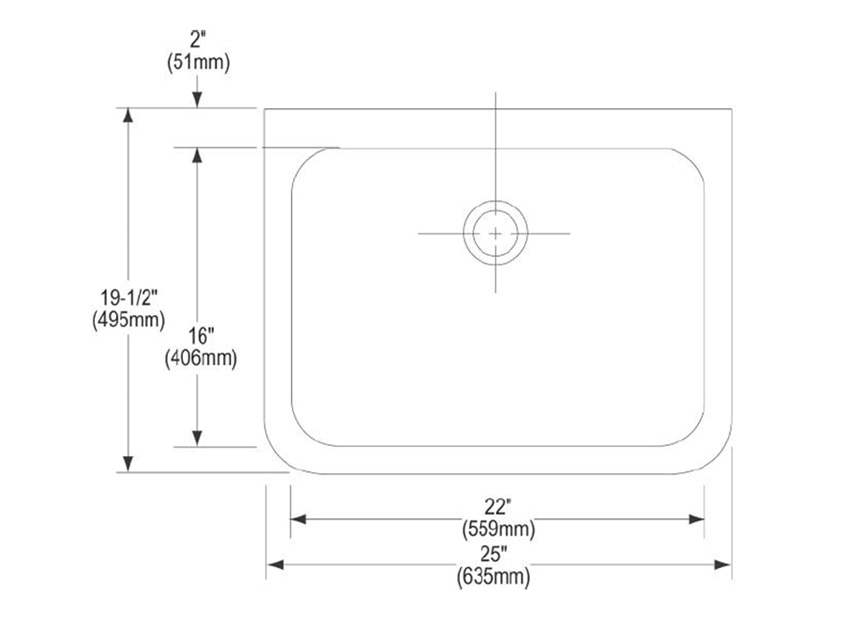

Measurement Diagram:


Material: Stainless Steel
Faucet Holes: 1
Installation Type: Wall
Number of Bowls: 1
Bowl Dimensions: L: 22" W: 16" H: 10-1/2"
Drain Size: 3-1/2"
Application Tkype: Scrub + Handwash
Includes: EWS2520 sink and one LKB722C sensor faucet with AC plug-in / 4 AA batteries,
one LK723 thermostatic mixing valve
Code Compliance (Sink): ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Code Compliance (Faucet): ADA & ICC A117.1
ASME A112.18.1/CSA B125.1
NSF 61 NSF 372 (lead free)

Code Compliance (Accessories): ASME A112.18.2/CSA B125.2
UPC / GTIN: 094902278643
Shipping Dimensions: Box 1: 5-7/16" Length x 5-3/4" Width x 5-3/4" Height
Box 2: 25-7/8" Length x 26-7/8" Width x 26-7/8" Height
Box 3: 17-1/2" Length x 3-3/4" Width x 3-3/4" Height
Box 4: 4-1/2" Length x 3-3/16" Width x 3-3/16" Height
Shipping Weight: 51 lbs.
Country of Manufacture: United States
Manufacturer Model No.: EWS2520SACTMC
Warranty: 5 Yr. Manufacturer's Limited

Architectural Specifications:



Elkay Stainless Steel 25" x 19.5" x 10-1/2", Wall Hung Single Bowl Hand Wash Sink Kit. Sink is manufactured from 14 gauge 304 Stainless Steel with a Buffed Satin finish, Rear Center drain placement.
