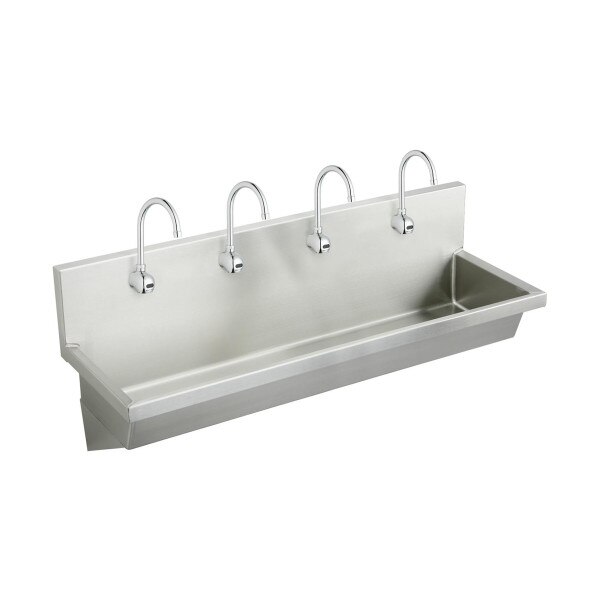

Elkay (EWMA9620SACTMC) Four Station Hand Wash Sink, Sensor Faucet Package, SS, 96" x 20" x 8"
Elkay heavy duty wall hung 4 station stainless steel sink. Four hands free (touchless) EWMA4820 gooseneck faucets and four LK723 thermostatic mixing valves included. Overall dimensions are 96" wide x 20" projection x 25-3/4" high. Sink is manufactured from 14 gauge type 304 stainless steel with a #4 architectural satin finish. Bowl dimensions are 93” wide x 16-1/2” front to back x 8” deep. Drain size is 3-1/2”. LK18B grid drain included. AC plug-in power supply and 8 AA batteries provided. Ships via LTL on a pallet.
14-gauge, Type 304 stainless steel
1/4" coved corners
1-1/2" wide inward sloping top channel rims with 2" flat apron
10" high, full-length backsplash
Square rim corners
3-1/2" drain opening
Certifications:

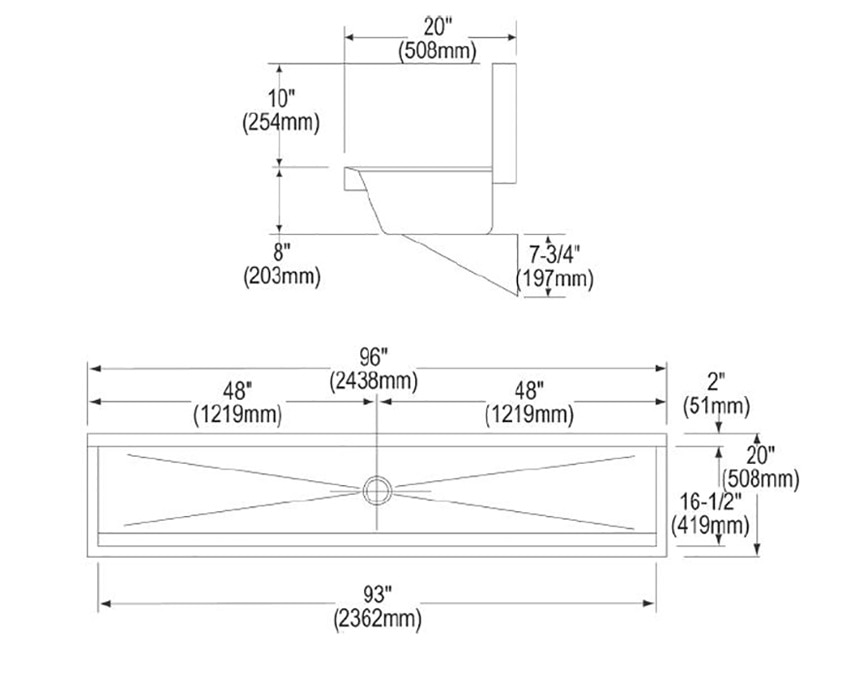

Measurement Diagram:
| Material: | Stainless Steel |
| Faucet Holes: | 4 |
| Installation Type: | Wall |
| Number of Bowls: | 1 |
| Bowl Dimensions: | L: 93" W: 16-1/2" H: 8" |
| Drain Size: | 3-1/2" |
| Application Tkype: | Scrub + Handwash |
| Includes: | EWMA9620 sink, four LKB722C sensor faucets AC plug-in / 16 AA batteries, four LK723 thermostatic mixing valves, one LK18B grid drain |
| Code Compliance (Sink): | ASME A112.19.3/CSA B45.4 BUY AMERICAN ACT |
| Code Compliance (Faucet): | ADA & ICC A117.1 ASME A112.18.1/CSA B125.1 NSF 61 NSF 372 (lead free) |
| Code Compliance (Accessories): | ASME A112.18.2/CSA B125.2 |
| UPC / GTIN: | 094902278858 |
| Shipping Dimensions: | Box 1: 17-1/2" Length x 3-3/4" Width x 3-3/4" Height Box 2: 17-1/2" Length x 3-3/4" Width x 3-3/4" Height Box 3: 17-1/2" Length x 3-3/4" Width x 3-3/4" Height Box 4: 17-1/2" Length x 3-3/4" Width x 3-3/4" Height Box 5: 5-7/16" Length x 5-3/4" Width x 5-3/4" Height Box 6: 5-7/16" Length x 5-3/4" Width x 5-3/4" Height Box 7: 5-7/16" Length x 5-3/4" Width x 5-3/4" Height Box 8: 5-7/16" Length x 5-3/4" Width x 5-3/4" Height Box 9: 100-3/16" Length x 21-7/8" Width x 21-7/8" Height Box 10: 4-1/2" Length x 3-3/16" Width x 3-3/16" Height |
| Shipping Weight: | 173 lbs. |
| Country of Manufacture: | United States |
| Manufacturer Model No.: | EWMA9620SACTMC |
| Warranty: | 5 Yr. Manufacturer's Limited |
Architectural Specifications:
Elkay Stainless Steel 96" x 20" x 8", Wall Hung Multiple Station Hand Wash Sink Kit. Sink is manufactured from 14 gauge 304 Stainless Steel with a Buffed Satin finish, Center drain placement.
