Elkay (EWMA4820SACTMC) Two Station Hand Wash Sink, Sensor Faucet Package, SS, 48" x 20" x 8"

(0) No Reviews yet
$4,347.00
SKU: EWMA4820SACTMC

This item will ship from the manufacturer in about 8 days.

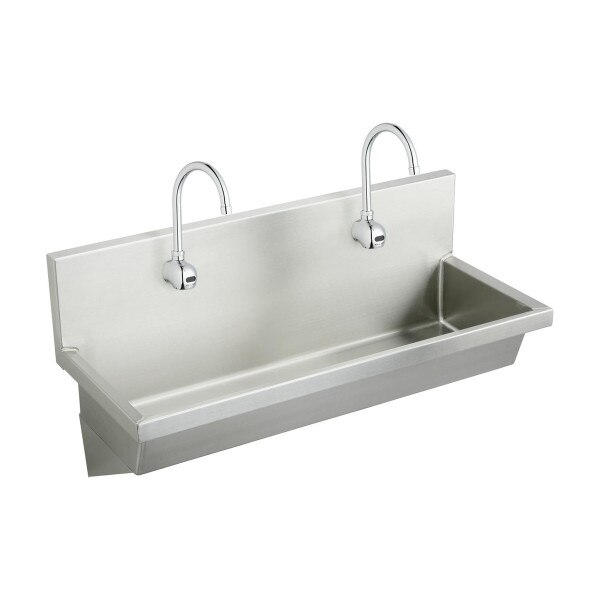

Elkay heavy duty wall hung 2 station stainless steel sink. 2 hands free (touchless) EWMA4820 gooseneck faucets and two LK723 thermostatic mixing valves included. Overall dimensions are 48" wide x 20" projection x 25-3/4" high. Sink is manufactured from 14 gauge type 304 stainless steel with a #4 architectural satin finish. Bowl dimensions are 45” wide x 16-1/2” front to back x 8” deep. Drain size is 3-1/2”. LK18B grid drain included. AC plug-in power supply and 8 AA batteries provided. Ships via LTL on a pallet.


  • 14-gauge, Type 304 stainless steel

  • 1/4" coved corners

  • 1-1/2" wide inward sloping top channel rims with 2" flat apron

  • 10" high, full-length backsplash

  • Square rim corners

  • 3-1/2" drain opening



Certifications:

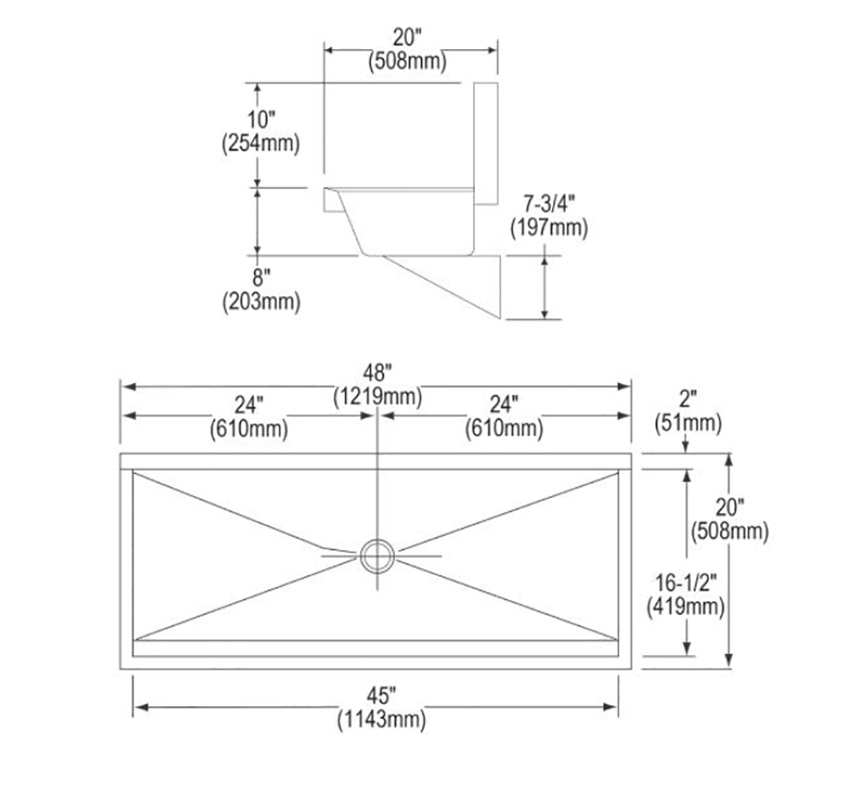

Measurement Diagram:


Material: Stainless Steel
Faucet Holes: 1
Installation Type: Wall
Number of Bowls: 1
Bowl Dimensions: L: 45" W: 16-1/2" H: 8"
Drain Size: 3-1/2"
Application Tkype: Scrub + Handwash
Includes: EWMA4820 sink, two LKB722C sensor faucets AC plug-in / 8 AA batteries,
two LK723 thermostatic mixing valves, one LK18B grid drain
Code Compliance (Sink): ASME A112.19.3/CSA B45.4
BUY AMERICAN ACT
Code Compliance (Faucet): ADA & ICC A117.1
ASME A112.18.1/CSA B125.1
NSF 61 NSF 372 (lead free)

Code Compliance (Accessories): ASME A112.18.2/CSA B125.2
UPC / GTIN: 094902278827
Shipping Dimensions: Box 1: 17-1/2" Length x 3-3/4" Width x 3-3/4" Height
Box 2: 17-1/2" Length x 3-3/4" Width x 3-3/4" Height
Box 3: 5-7/16" Length x 5-3/4" Width x 5-3/4" Height
Box 4: 5-7/16" Length x 5-3/4" Width x 5-3/4" Height
Box 5: 4-1/2" Length x 3-3/16" Width x 3-3/16" Height
Box 6: 52-3/16" Length x 21-7/8" Width x 21-7/8" Height
Shipping Weight: 95 lbs.
Country of Manufacture: United States
Manufacturer Model No.: EWMA4820SACTMC
Warranty: 5 Yr. Manufacturer's Limited

Architectural Specifications:



Elkay Stainless Steel 48" x 20" x 8", Wall Hung Multiple Station Hand Wash Sink Kit. Sink is manufactured from 14 gauge 304 Stainless Steel with a Buffed Satin finish, Center drain placement.
