Especially good for LBWD Series Bottle Fillers.
Remote type, electric refrigerated water chiller unit.
Chilling Capacity of 1.5 GPH (gallons per hour) of 50 F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing.
Installs in remote service area (within 15 feet recommended).
- Converts any drinking fountain into a water cooler.
- Allows flexible installation location of refrigeration - up to 15 feet from dispensing location.
- Provides cool water for most single station applications.
- Fully enclosed for safe mounting anywhere.
- Ideal for permanently wired applications.
- Rated for indoor use.
Certifications:

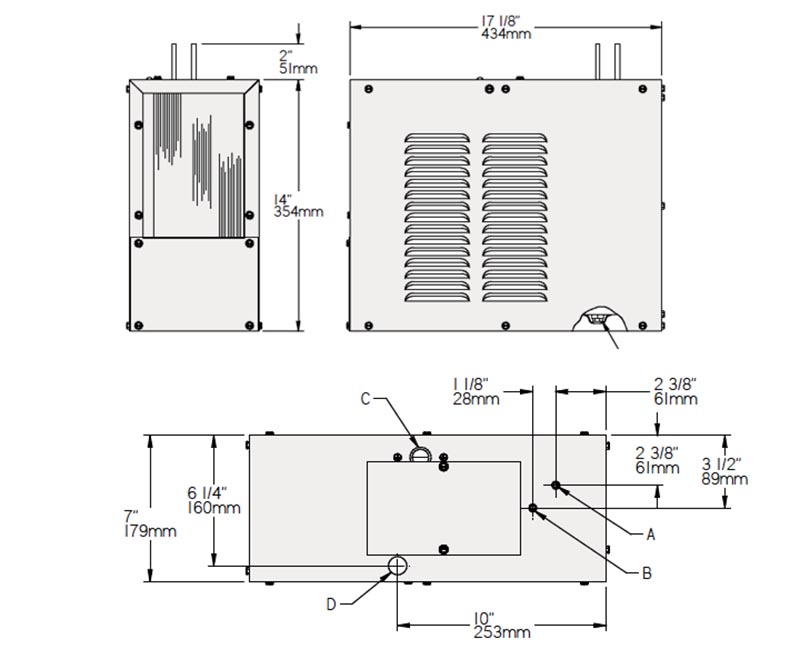

Measurement Diagram:
Architectural Specification:
Remote type, electric refrigerated water chiller unit. Chilling Capacity of 1.5 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Installs directly under fountain or other application, or may be located in a service area to serve a remote outlet (within 15 feet recommended). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements. Can be used with reverse osmosis filtered water, contains stainless steel tank and waterways.
Warnings:
