Elkay ERS11Y Remote Chiller, 1.5 GPH, 110-120V
 | Especially good for LBWD Series Bottle Fillers. |

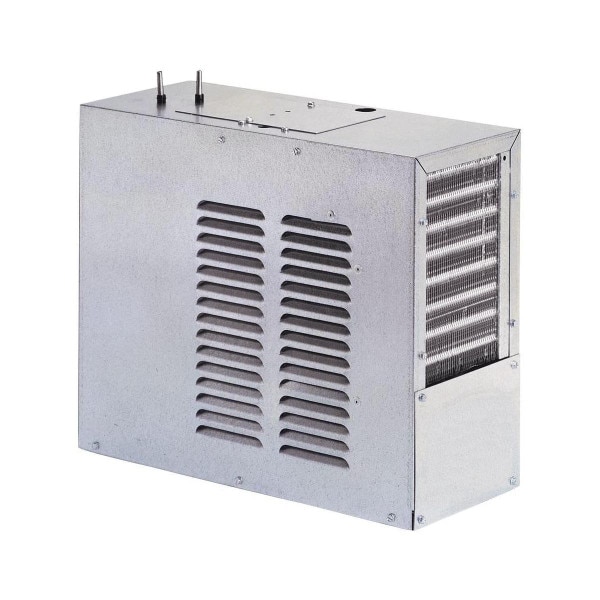

Remote type, electric refrigerated water chiller unit.
Chilling Capacity of 1.5 GPH (gallons per hour) of 50 F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing.
Installs in remote service area (within 15 feet recommended).
- Converts any drinking fountain into a water cooler.
- Allows flexible installation location of refrigeration - up to 15 feet from dispensing location.
- Provides cool water for most single station applications.
- Fully enclosed for safe mounting anywhere.
- Ideal for permanently wired applications.
- Rated for indoor use.
Certifications:

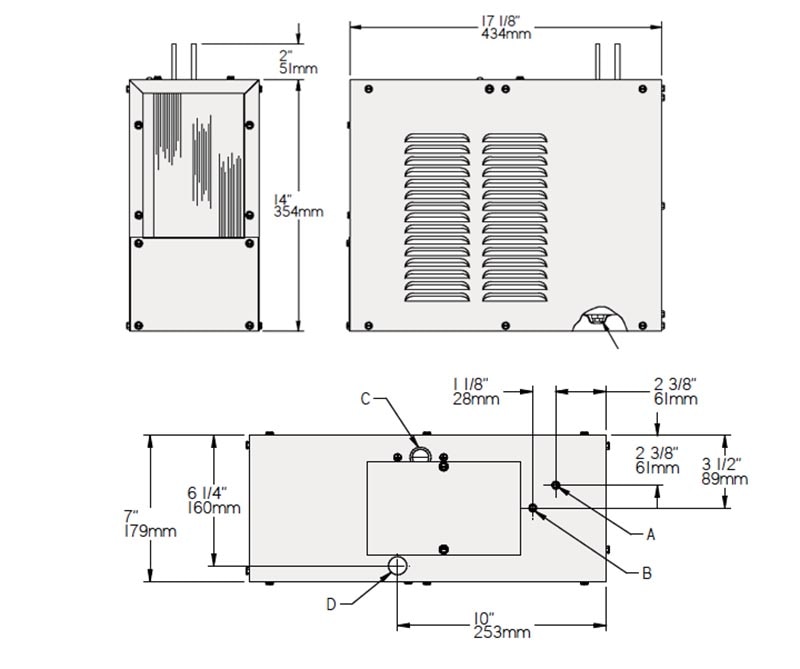

Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | Can supply one (1) water dispenser |
| Mount: | Floor or Free Standing |
| Operation: | Not applicable |
| Basin(s): | Not applicable |
| Cabinet(s): | Galvanized Steel |
| Bubbler(s): | Not applicable |
| Cooled: | Yes |
| Filtered: | Not applicable |
| Power: | 110-120V (Standard) |
| Status Display: | Not applicable |
| Overall Dimensions: | 14" Tall x 7" Wide x 17-1/8" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | 17-3/4" Height x 8-3/4" Width x 18-3/4" Length |
| Shipping Weight: | 33 lbs. |
| UPC / GTIN: | '094902160511 |
| Manufacturer Model No.: | ERS11Y |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Remote type, electric refrigerated water chiller unit. Chilling Capacity of 1.5 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Installs directly under fountain or other application, or may be located in a service area to serve a remote outlet (within 15 feet recommended). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements. Can be used with reverse osmosis filtered water, contains stainless steel tank and waterways.
