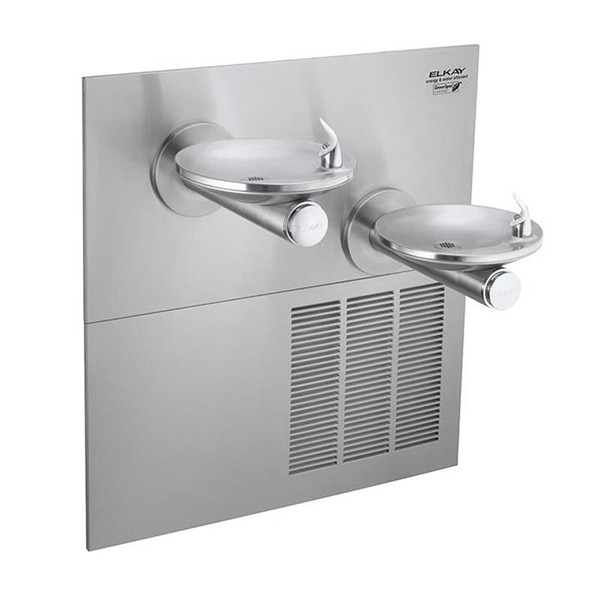

Elkay ERPBGRNM28K SwirlFlo Bi-level ADA Water Fountain, Green Spec, 8 GPH (Non-Filtered)
Details
SwirlFlo® architectural refrigerated fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface.
High-performance compressor and insulation greatly reduces energy consumption.
Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge.
Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.
Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
Equipped with StreamSaver low-flow bubbler.
One-piece back panel eliminates unsightly seams.
Certifications:

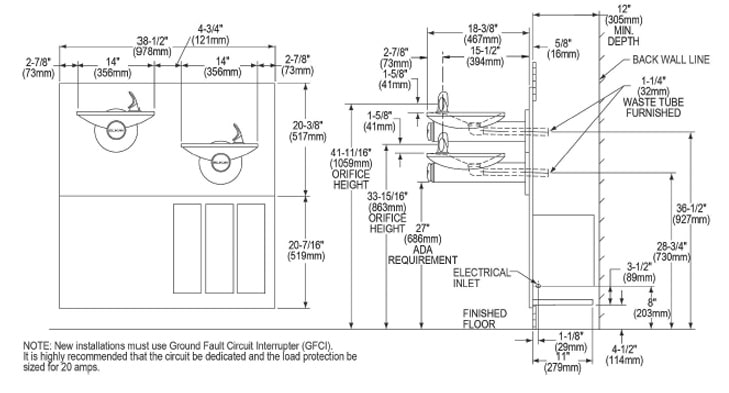

Measurement Diagram:
Specs
| Installation Location: | Indoor |
| Number of Stations: | Two (2) drinking fountains |
| Mount: | Wall / Recessed |
| Operation: | Push button |
| Basin(s): | Oval (Swirlflo)| Stainless Steel |
| Cabinet(s): | Stainless Steel| Brushed Finish |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | None |
| Overall Dimensions: | 40-13/16" Tall x 38-1/2" Wide x 19" Deep |
| Rough-in: | 37-3/4" Tall x 37-1/2" Wide x 12" Deep |
| Shipping Dimensions: | Box 1: 41" Length x 15-3/16" Width x 29-1/2" Height Box 2: 12-1/2" Length x 15-1/2" Width x 22" Height Box 3: 19" Length x 9" Width x 46" Height |
| Shipping Weight: | 141 lbs. |
| UPC / GTIN: | 94902630915 |
| Manufacturer Model No.: | ERPBGRNM28K |
| Included: | Fountain (ERPBGRND28C) Chiller (ECH8GRN) Mounting Frame (MF200) |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay SwirlFlo® Bi-level High Efficiency ADA Fountain with Mounting Frame Non-filtered Refrigerated Stainless. Chilling Capacity of 7.5 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Features shall include Energy Savings. Furnished with Flexi-Guard ® StreamSaver ™ bubbler. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (In-wall Frame/Plate), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
