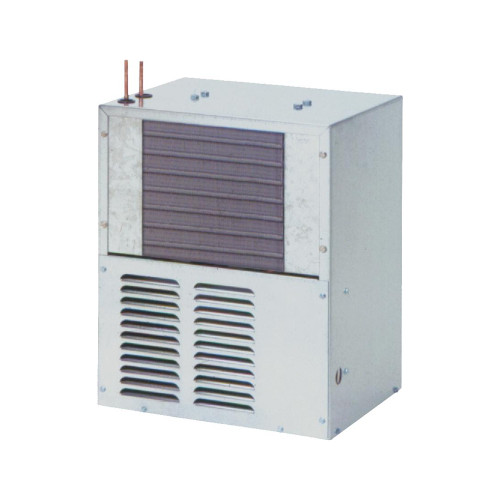

Elkay ER101Y Remote Chiller, 10 GPH, 110-120V

SKU: ER101Y
(No reviews yet) Write a Review
$1,618.24
Adding to cart… The item has been added

Remote water chillers convert standard drinking fountains into a water cooler.

  • Converts any drinking fountain into a water cooler.
  • Allows flexible installation location of refrigeration - up to 15 feet from dispensing location.
  • Large capacity tank and increased cooling capacity for demanding applications.
  • Fully enclosed for safe mounting anywhere.
  • Ideal for permanently wired applications.
  • Rated for indoor use.

Certifications:

cULus Certifification
US Water Quality Association Certified
NSF 61
Buy American Act Compliant

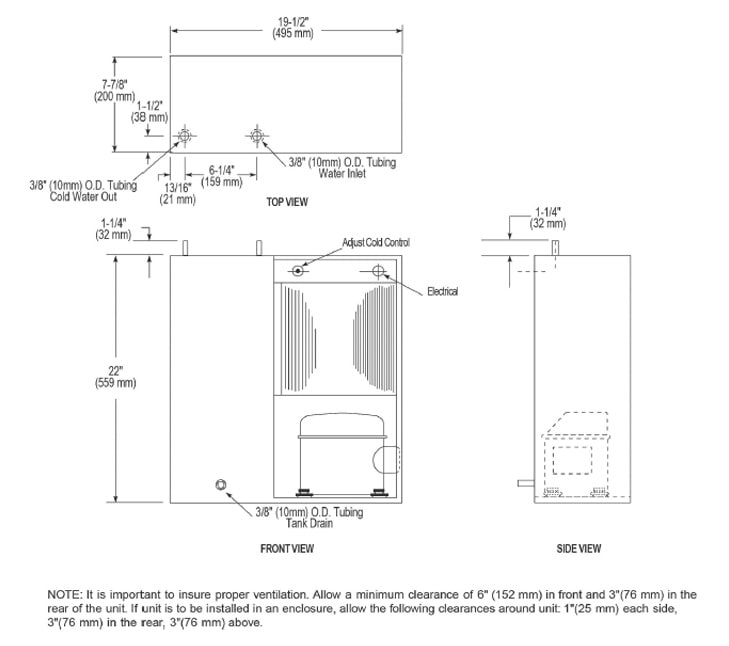

Measurement Diagram:

Measurement Diagram for Elkay ER101Y Chiller
Architectural Specification:

Remote type, electric refrigerated water chiller unit. Chilling Capacity of 10.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Installs directly under fountain or other application, or may be located in service area to serve up to 2 remote outlets (within 15 feet recommended). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.

Warnings:
Product Safety Warning:
California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.
