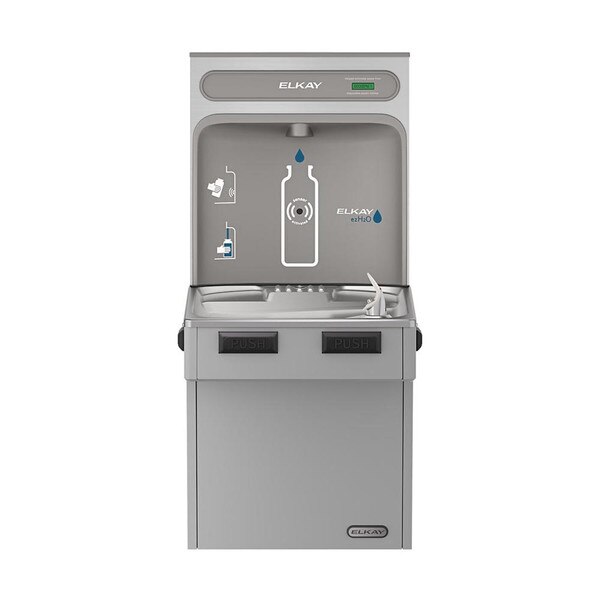

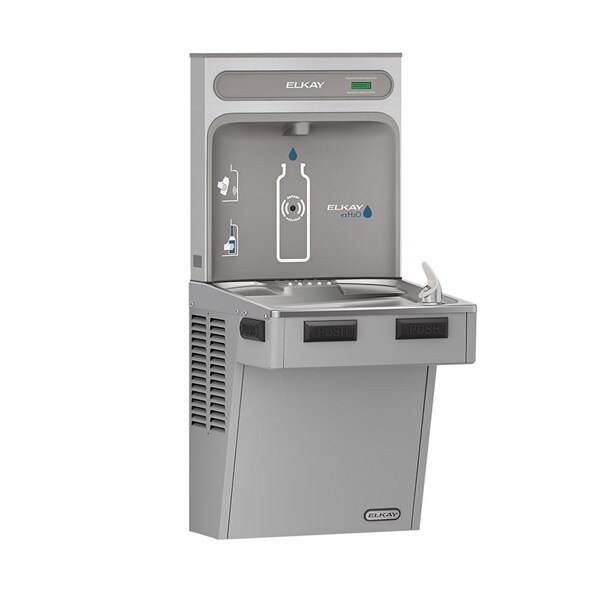

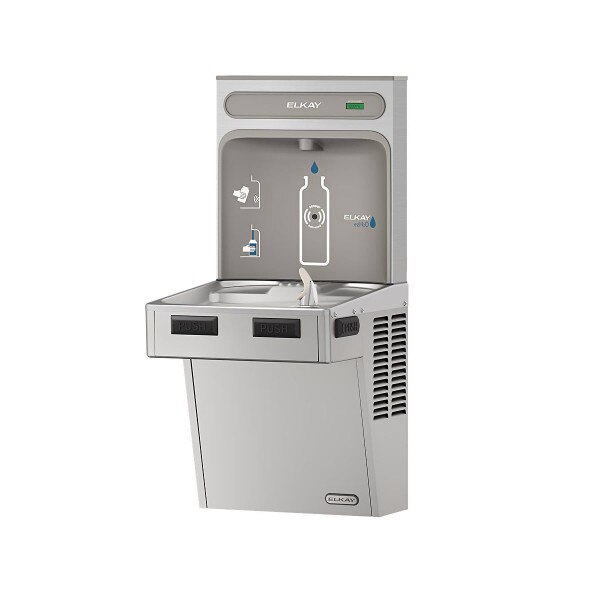

Elkay EMABF8WSSK EZH2O Bottle Filling Station with Bi-Level ADA Cooler, 8 GPH, Stainless (Refrigerated, Non-Filtered)
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Touchless, sensor-activated bottle filler, designed for easy use; mechanically-activated bubbler continues to supply water when power is interrupted.
Fill rate is 1.1 GPM.
Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
Laminar flow provides clean fill with minimal splash.
Certifications:
Measurement Diagram:
| Installation Location: | Indoor |
| Number of Stations: | One (1) drinking fountains plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Surface |
| Operation: | Automatic (Infra-red sensor) bottle filler Push button drinking fountain |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Flexi-Guard Safety Bubbler |
| Cooled: | Yes |
| Filtered: | No |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter |
| Overall Dimensions: | 46-1/4" Tall x 18-1/2" Width x 17-7/8" Deep |
| Rough-in: | Not applicable |
| Shipping Dimensions: | Box 1: 23-11/16" Length x 8-13/16" Width x 24-3/8" Height Box 2: 20-1/2" Length x 19-11/16" Width x 26-3/16" Height |
| Shipping Weight: | 92 lbs. |
| UPC / GTIN: | '094902013961 |
| Manufacturer Model No.: | EMABF8WSSK |
| Country of Manufacture: | USA |
| Warranty: | Refrigeration: 5 Yr. Manufacturer's Limited All Other.: 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Bottle Filling Station with Mechanically Activated Single ADA Cooler Filtered Refrigerated Stainless. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80 F inlet water and 90 F ambient, per ASHRAE 18 testing. Features shall include Antimicrobial, Green Ticker™, Hands Free, Laminar Flow, Mechanically Activated, Real Drain, Furnished with Flexi-Guard ® Safety Bubbler. Electronic Bottle Filler Sensor with Mechanical Front and Side Bubbler Pushbar activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
