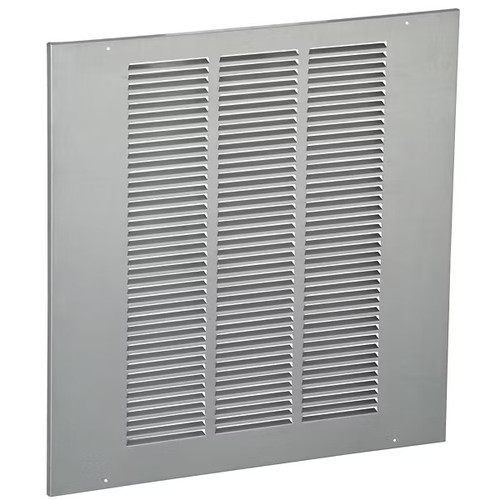

Optional accessory - louvered grill vent cover panel - for use when remote chiller (ER5, ER10, or ER19) is recessed into a closed wall or cabinet with no existing airflow opening. Not required for open-air installations or closets with existing vent openings.
Elkay remote chillers are meant to be installed in a properly ventilated, non-visible location. If your remote chiller (ER5, ER10, or ER19) is inside a closed wall or cabinet with no natural air circulation the EG3 louvered grill provides the ventilation it needs.
Angled slats act as a two-way vent for a clean airflow path
Angled slats act as a two-way vent for a clean airflow path
- Vented grille used with Elkay remote chillers ER5, ER10 and ER19 inside a wall, cabinet, or closet with restricted airflow
- Installed flush on the room-facing surface over a cutout opening that leads to the chiller’s air space
- Covers a cutout opening that lines up with the chiller’s fan area
- Overall dimensions are 26" x 1/2" x 26-1/2"
- Allows the continuous circulation of cool room air in and warm condenser air out
