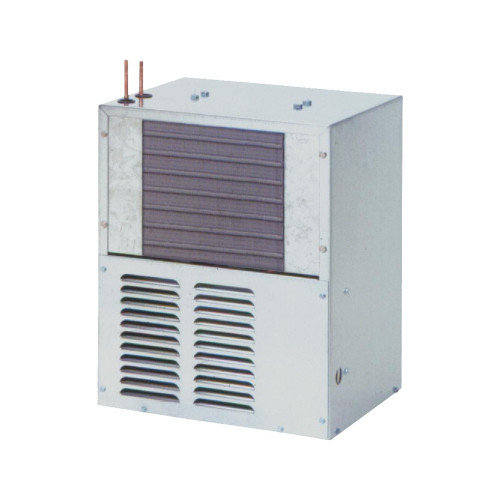

Remote type, electric refrigerated water chiller unit. Chilling Capacity of 8.0 GPH (gallons per hour) of 50 F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing.
Installs directly under fountain or other application, or may be located in service area to serve up to 2 remote outlets (within 15 feet recommended).
NOTE: If you are looking for an ECH8P, this is the same as the ECH8 shown here. Elkay adds the "P" to the item number when they ship it as part of a complete water fountain or bottle filler, but they confirm that the two are identical.
- Converts any drinking fountain into a water cooler.
- Allows flexible installation location of refrigeration - up to 15 feet from dispensing location.
- Provides cool water for most two station applications.
- Fully enclosed for safe mounting anywhere.
- Ideal for permanently wired applications.
- Rated for indoor use.
Certifications:

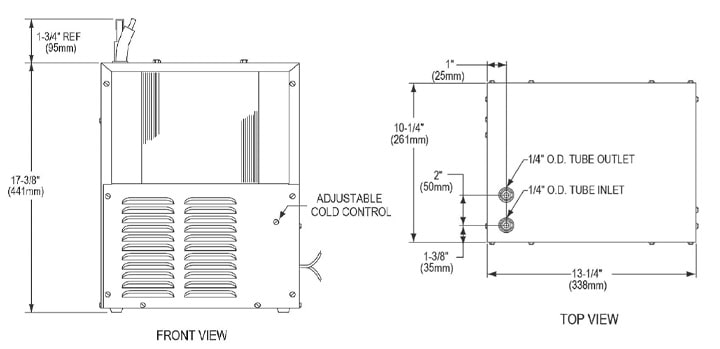

Measurement Diagram:

Architectural Specification:
Remote type, electric refrigerated water chiller unit. Chilling Capacity of 8.0 GPH (gallons per hour) of 50F drinking water, based on 80F inlet water and 90F ambient, per ASHRAE 18 testing. Installs directly under fountain or other application, or may be located in service area to serve up to 2 remote outlets (within 15 feet recommended). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
Warnings:
