Elkay (ECDFPW314C) Slimline Soft Sides, Wall-mount, Drinking Fountain (Non-refrigerated, Non-filtered)

(0) No Reviews yet

This product will ship form the manufacturer in 3 days.

No power required!
IMPORTANT: This product is non-refrigerated. It does NOT cool the water it dispenses.

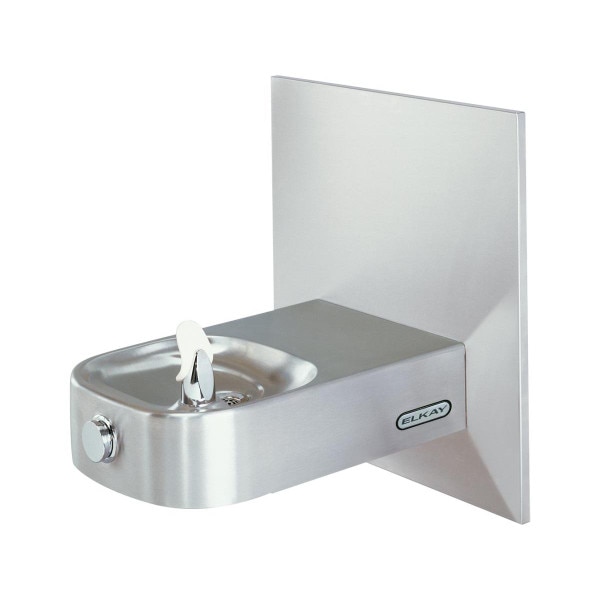

Soft Sides® Slimline® architectural drinking fountains feature softly rounded corners and a contoured basin designed to provide a splash-resistant surface. This slim profile model is ideal for children's use installations. Constructed of #18 gauge, type 304, stainless steel polished to a satin finish.

  • Stainless steel construction withstands abusive environments and resists stains.

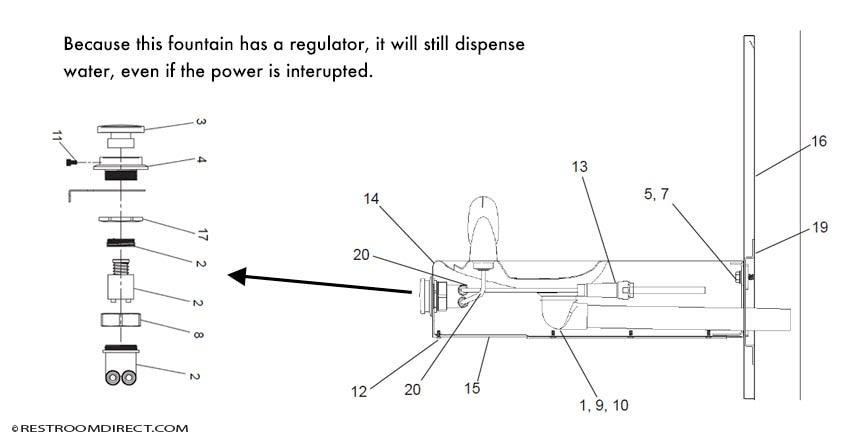

  • Mechanical push-button bubbler activation continues to provide water when electrical service is interrupted.

  • Bottom cover plate conceals plumbing and internal components.

  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.

  • 1 Year Elkay Manufacturer's Limited Warranty

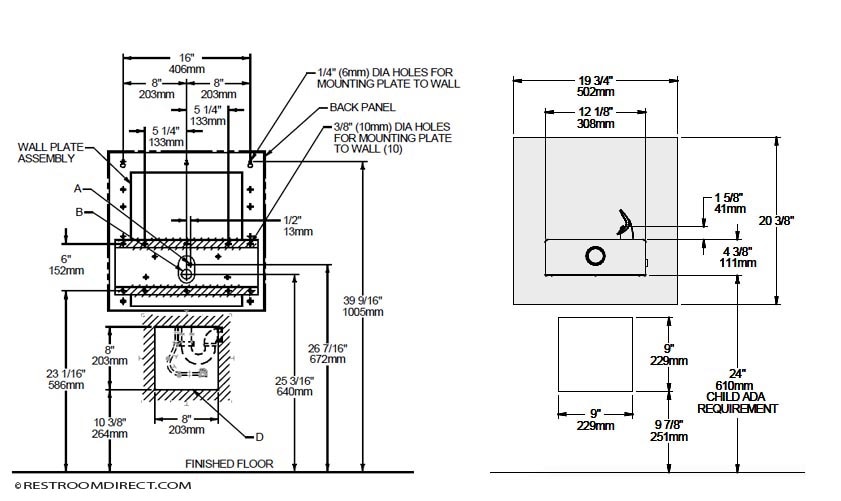

Measurement Diagram:


Need a vandal resistant bubbler? Try the ECDFPWVR314C .

Installation Location: Indoor or Outdoor
Number of Stations: One (1) drinking fountain
Mount: Wall / Surface
Operation: Push button
Basin(s): Stainless Steel, Brushed Finish
Cabinet(s): Stainless Steel, Brushed Finish
Bubbler(s): Flexi-Guard Safety Bubbler
Cooled: No
Filtered: No
Power: No power required
Status Display: None
Overall Dimensions: 20-3/8" Tall x 19-3/4" Width x 18-3/4" Deep
Rough-in: Not applicable
Shipping Dimensions: 20.375" Length x 19.75" Width x 19.375" Height
Shipping Weight: 26 lbs.
UPC / GTIN: 094902295954
Manufacturer Model No.: ECDFPW314C
Country of Manufacture: USA
Warranty: 1 Yr. Manufacturer's Limited


California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:


Elkay Slimline® Soft Sides® Fountain Non-Filtered Non-Refrigerated, Stainless. Furnished with Flexi-Guard ® Safety Bubbler. Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor + Outdoor applications, serving 1 station(s). Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.
