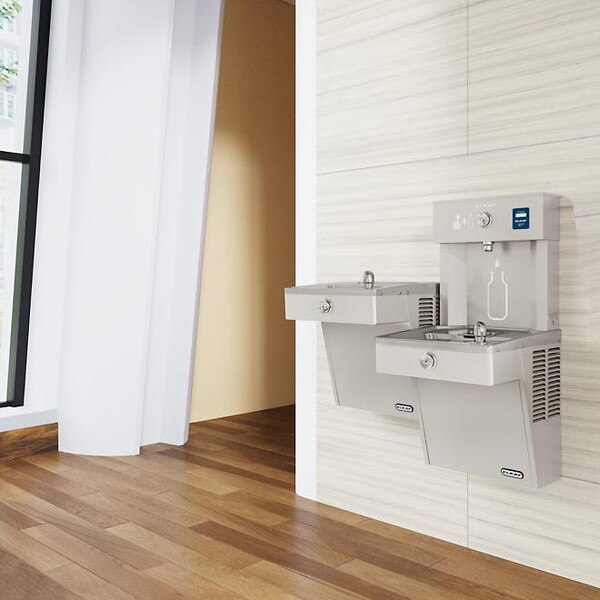

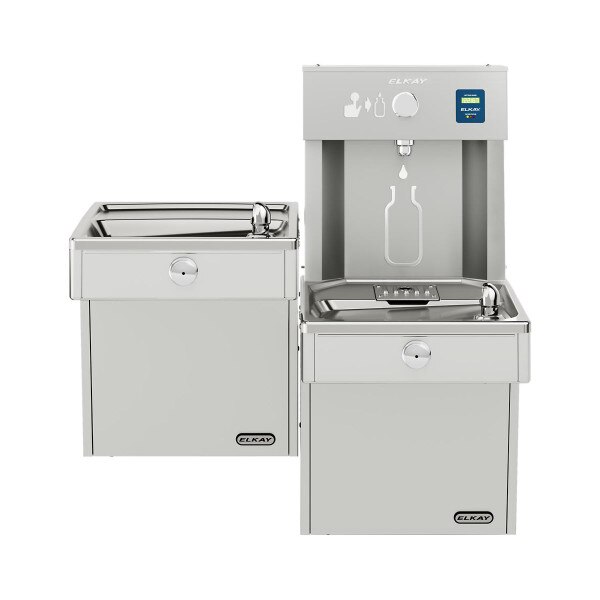

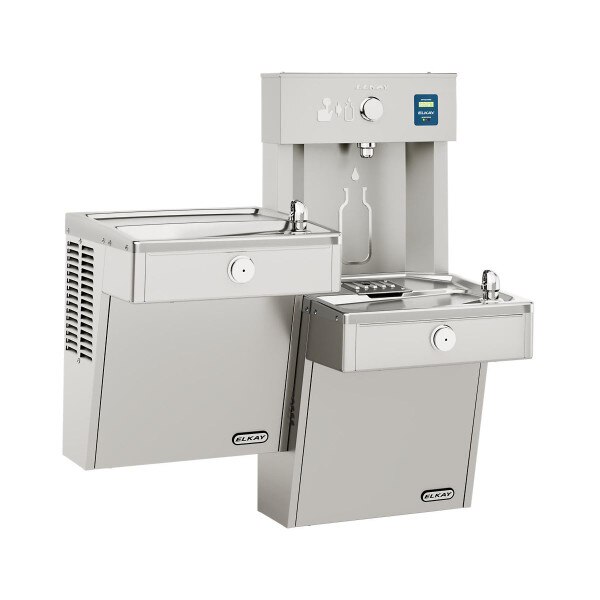

Elkay LVRCTLDDWSK ezH2O® Vandal-Resistant Bottle Filling Station & (Versatile) Bi-Level Fountain (Non-Refrigerated, FIltered
 | IMPORTANT: This product is NON-REFRIGERATED. It does not chill the water that is dispensed. ALSO: Mechanically-Activated unit continues to supply water (from bubblers) in event of service disruptions. |
This Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles.
Vandal-resistant cooler and bottle filling station in a consolidated space saving ADA compliant design. Pushbutton activation with automatic 20-second shut-off timer on bottle filler.
Rated for INDOOR use only.
- Ideal for heavy-use installations such as educational and indoor recreational facilities.
- Vandal-resistant, push-button activation for both the bottle filler and the water cooler.
- Laminar flow provides clean fill with minimal splash. Bottle Filler fill rate is 1.5 GPM (Gallons per Minute)
- Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
- Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
- FillSafe™ Filter Status Indicator (Green/Yellow/Red) let's you know when it's time to change the filter.*

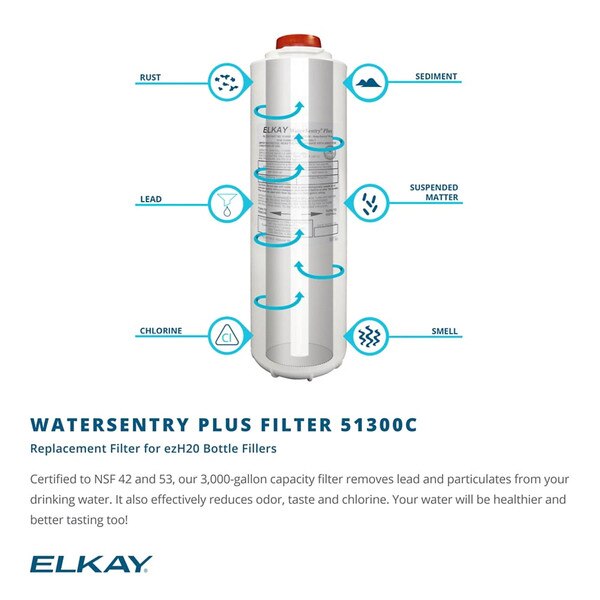

This model comes with a Elkay 51300C filter which is good for 3000 gallons before it will need to be replaced. For a longer life filter, choose the Elkay 51600C water filter which lasts twice as long.
*Filter indicator will show when 3000 gallons have been filtered and the filter has reached the end of useful life. Elkay recommends the filter to be changed at least once per year, regardless of whether or not filter has reached the end of useful life.
Certifications:
Measurement Diagram:
| Installation Location: | Indoor Only |
| Number of Stations: | Two (2) drinking fountains plus one (1) EZH2O bottle filling station |
| Mount: | Wall / Surface |
| Operation: | Push Button |
| Basin(s): | Stainless Steel, Brushed Finish |
| Cabinet(s): | Stainless Steel, Brushed Finish |
| Bubbler(s): | Chrome Plated Vandal Resistant |
| Cooled: | No |
| Filtered: | Yes |
| Power: | 110-120V (Standard) |
| Status Display: | LCD Green Ticker Bottle Counter FillSafe™ Filter Status Indicator (Green/Yellow/Red) |
| Overall Dimensions: | 38-13/16" Tall x 36-1/8" Width x 18-5/8" Deep |
| Rough-In: | Not Applicable |
| Shipping Dimensions: | Box 1: 34" Length x 20-5/8" Width x 20-5/8" Height Box 2: 24-1/4" Length x 22-3/4" Width x 11-1/16" Height |
| Shipping Weight: | 49 lbs. |
| UPC / GTIN: | 094902771908 |
| Manufacturer Model No.: | LVRCTLDDWSK |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products. |
Architectural Specifications:
Elkay ezH2O® Vandal-Resistant Bottle Filling Station & Bi-Level Cooler Filtered Non-Refrigerated Stainless. Features shall include Filtered, Green Ticker™, Laminar Flow, Real Drain, Vandal Resistant, Visual Filter Monitor. Furnished with Vandal Resistant bubbler. Electronic Bottle Filler Button with Mechanical Front Bubbler Button activation. Product shall be Wall Mount (On Wall), for Indoor applications, serving 2 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120.
