Bradley SA70-001240 Security Series - 24" Grab Bar, Straight, 1-1/2" O.D., SS, Smooth, Front Mounted
Details
 | Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. |
Top quality Bradley grab bar designed for commercial restroom applications. Design includes exposed front mounting with torx head screws with welded stainless steel closure plate. Architectural satin finish. 18 gauge 304 stainless steel tubing, seamless construction with exposed surfaces in architectural satin finish. All welds ground and polished to blend. 11 gauge stainless steel closure plate. Easy to install with optional anchoring devices also available from Bradley. Grab bar has a 1.5 inch outside diameter. Grab Bar is 24 inches long. Wall clearance is 1-1/2 inches. When properly mounted, grab bar meets or exceeds the requirements of ANSI A117.1, ADA and ABA Accessibility Guidelines for Buildings and Facilities (ADAAG).
Model SA70-001240 (24" long) Bradex®
3-1⁄8" dia. 11 gauge stainless steel flange, with exposed surfaces in architectural satin finish
1-1/2" O.D. 18 gauge stainless steel tubing, seamless construction with exposed surfaces in architectural satin finish
Closure plate: 11 gauge stainless steel
Horizontal mounting recommended. Vertical mounting is not recommended as unfinished side is exposed
Certifications:

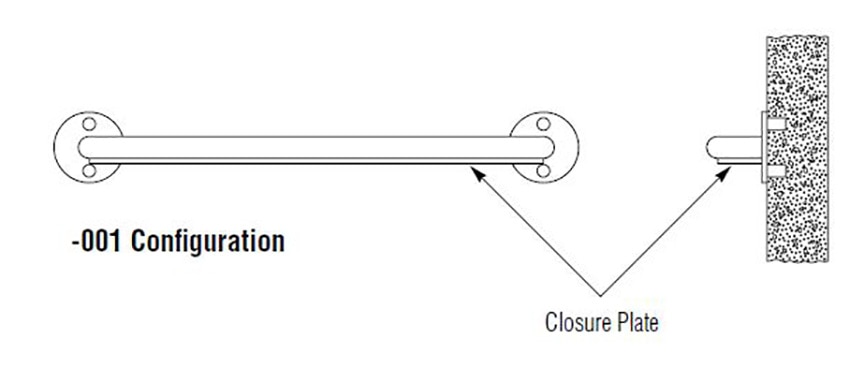

Measurement Diagram:
Specs
| Type: | Straight Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Exposed |
| Outside Diameter: | 1-1/2" |
| Rated Width: | Not Applicable |
| Rated Length: | 24" |
| Grip Type: | Smooth |
| Finish / Color: | Satin |
| Load Capacity: | Up to 250 lbs. |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 27" Wide x 3" Tall x 3" Deep |
| Shipping Dimensions: | 28" Length x 4" Width x 4" Height |
| Shipping Weight: | 4.5 lbs. |
| UPC / GTIN: | 084241000968 |
| Manufacturer Model No.: | SA70-001240 |
| Country of Manufacture: | USA |
| Warranty: | 1 Yr. Manufacturer's Limited |
Warnings:
 | This product can expose you to chemicals including Nickel (Metallic), which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. |
