New Electrocoat finish - Beautiful translucent finish protects against fingerprints & color fading.

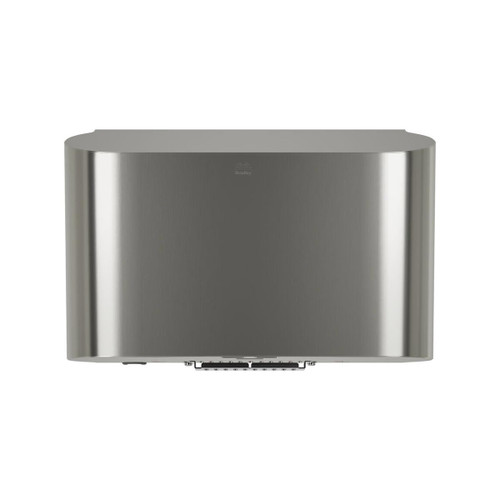

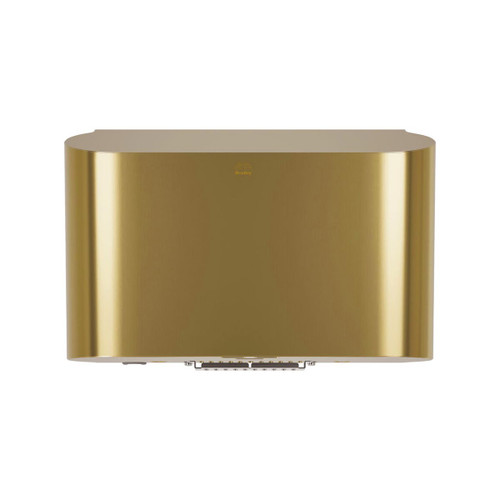

This hand dryer is Part of Bradley's unique upscale, Elvari collection. It is quick, with a drying time of 10-15 seconds and includes a new filter system with a 3M Filtrete, Merv 12 filter and activated charcoal pass through for clean fresh air.
Expertly crafted using advanced weld construction from 20 gauge 300 series stainless steel, with a brushed finish. Combined with other Elvari fixtures, It's clean lines and smooth geometric design will create a clean contemporary look for your washroom.
Translucent Nickel Electrocoat Finish | 220-240V, 50/60Hz input. 3.8–4.2A (switchable heat setting)
All Elvari products feature a new Electrocoat process that imparts a sophisticated translucent color-fast finish and resistance to fingerprints and smudging.
IMPORTANT: As this product is made to order the manufacturer does not allow returns or cancellations.
- Fingerprint & smudge resistant, colorfast coating.
- High quality and modern style complements other Elvari™ products
- Includes a 3M filtrete with a MERV rating of 12 and filters 80%–89.9% of 1.0–3.0 micron particles and 90% or greater of 3.0–10.0 micron particles
- Includes a carbon filter for filtering and trapping of volatile organic compounds (VOCs), gases, and odors
- Adjustable sensing distance and air speed for customized performance
- Dual air outlets resulting in enhanced drying efficiency and quieter operation
What is Bradley Electrocoat? See our Electrocoat FAQ page for more details.
Measurement Diagram:
Architectural Specification:
ADA slim profile, surface-mounted hand dryer shall be constructed from 20‑gauge, 300 series stainless steel in a brushed #3 satin finish or optional electrocoat finishes. Welded mounting frame for added strength. Hand dryer shall operate at 72–78 dB with an air speed of 70–82 m/s. Hand dryer shall be equipped with a carbon filter set, as well as a 3M filtrete filter set. Dryer shall have separate part numbers based on operating voltage of 110–120VAC and 220–240VAC input. Dryer shall have an adjustable motor wattage from 325–500W. Dryer shall have a dedicated circuit with a minimum of 15A and must be properly grounded. Dryer shall be equipped with motor thermal protection, and heater thermal protection.
Warnings:
