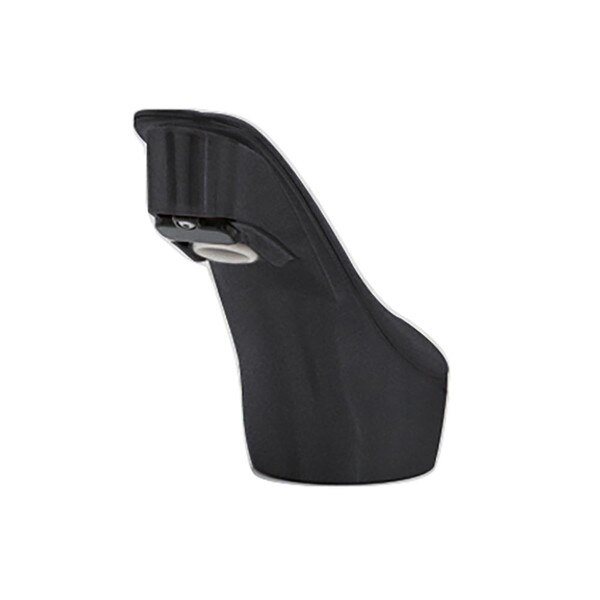

Bobrick (B-8872) Automatic (Touchless) Faucet , Matte Black Finish, 0.5 GPM, Battery Operated
Automatic, “touch-free” Designer Series Faucet with die-cast zinc body construction. Matte black finish. Hidden sensor lens delivers reliable and hygienic hands-free operation.
ADA compliant unit uses 4 “AA” batteries and includes in-line filter. Faucets have adjustable time-out durations, line purging, adaptable sensor ranges, and LEED flow-rate options.
Optional — 6V AC Adapter: For AC adapter option, order both parts, part no. 8878-72 AC Power Converter and 8878-73 Inline Connector.
Available in five different finishes (matte black, polished chrome, polished nickel, brushed nickel, and polished brass) that exactly match Bobrick Designer Series Soap Dispensers.
Automatic soap dispenser available in a matching finish. Foaming or Liquid.
NOTE: Temperature mixing valve, mixing tee, and water supply hose are not included in this Designer Series Faucet.
Looking for the matching FOAM SOAP dispenser? See Bradley B-842 Designer Series Matte Black Automatic Soap Dispenser
Looking for the matching LIQUID SOAP dispenser? See Bradley B-852 Designer Series Matte Black Automatic Soap Dispenser
|Manufacturer Model No.:||B-8872|
|Operation:||Automatic (Hands-Free) Sensor Activated|
|Color / Finish:||Matte Black|
|Primary Material:||Cast brass|
|Valve Type:||Temperature mixing valve, mixing tee, and water supply hose are NOT included.|
|Flow Rate:||0.5 GPM|
|Power:||4 AA type batteries (not included).|
|Overall Dimensions:||Overall dimensions not published.|

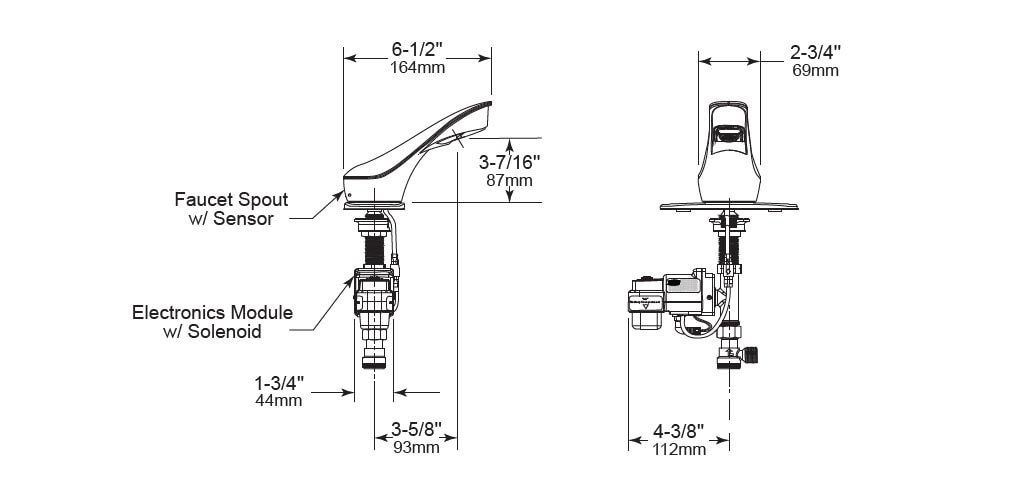

SPOUT DIMENSIONS: 2-3/4" Wide x 6-1/2" Deep x approx. 5" Tall (3-7/16" from bottom of outlet nozzle to counter)
|Rough-In:||Recommended through hole diameter to properly mount the spout/shank is 1 1/8” (32mm) to 1 1/4” (38mm).|
|Shipping Dimensions:||12.6" Length x 12.1" Width x 5.9" Height|
|Shipping Weight:||5 lbs.|
|UPC / GTIN:||Not published|
|Country of Manufacture:||USA|
|Warranty:||3 Yr. Manufacturer's|
|Additional Comments:||Adjustable operational modes for line purge function, an adaptable sensor range, flow time, sensing mode, and metering mode|
Designer Series Counter-Mounted Faucet shall be an ADA compliant automatic, touch-free sensor faucet. Spout is made of one-piece heavy-duty cast brass available in five different finishes. Unit shall offer adjustable operational modes for line purge function, an adaptable sensor range, flow time, sensing mode, and metering mode. Unit shall use an Infrared Convergence type proximity sensor to detect occupant hands and trigger the water flow for hygienic, hands-free operation. Faucet has an automatic shut-off feature after 30 seconds if hand is not removed or object remains in sensor field to prevent water spills and reduce excessive water use. Patented faucet includes an inline filter and is powered by 4 “AA” batteries (voltage range of 6 VDC Series) with an optional AC adapter. The Sensor activation range shall be self-calibrated, dependent upon sink depth and finish. The Operating Water Pressure shall be in a range of 10-125 PSI (70-850kPA). The Operational Water Temperature shall be in the range of 33°F to 140°F (1°C to 60°C). The Flow Rate shall be in the range of 0.5 GPM/ 1.9 LPM Vandal resistant non-aerated. For LEED Compliance on flow rate, refer to your local codes.
Product Group Variations:
